(41.216.AN[13]) - VAR - 758048 - SUSPENDED FRONT AXLE, STEERING CYLINDER

Запчасти Case IH PUMA 240 CVT (41.216.AN[13]) - VAR - 758048 - SUSPENDED FRONT AXLE, STEERING CYLINDER (41) - STEERING

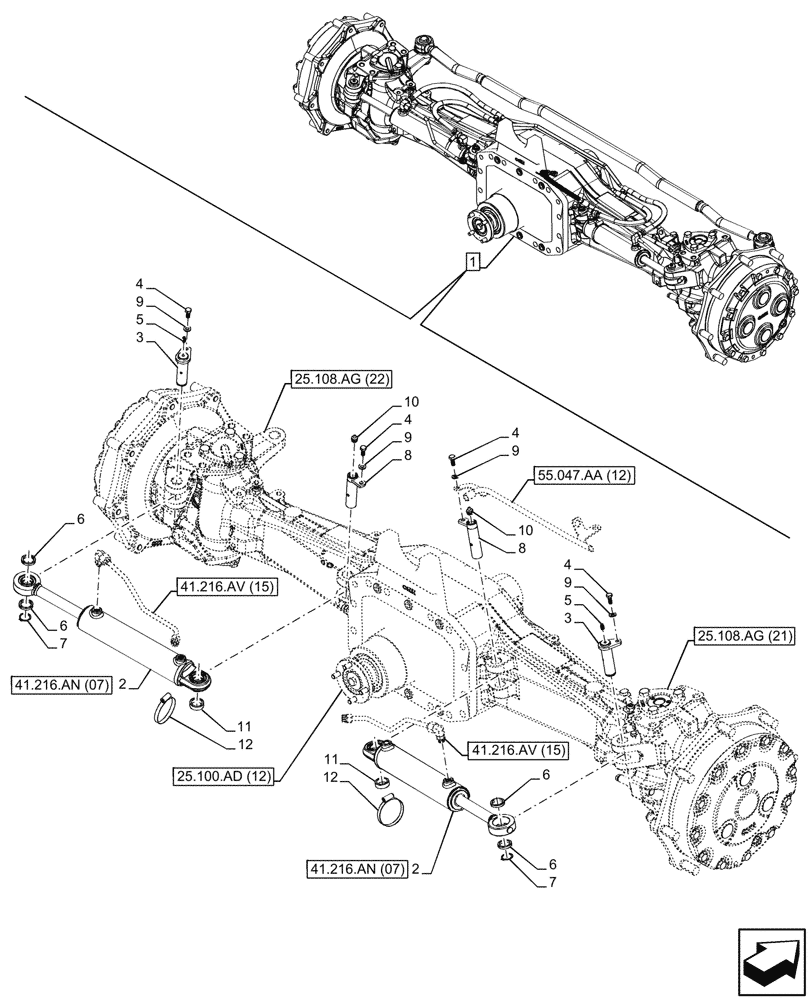

Схема запчастей Case IH PUMA 240 CVT - (41.216.AN[13]) - VAR - 758048 - SUSPENDED FRONT AXLE, STEERING CYLINDER (41) - STEERING
12
2
5
25.108.ag (21)
6
6
9
5
4
4
6
55.047.aa (12)
7
1
2
9
7
6
12
8
9
11
10
25.100.ad (12)
11
41.216.an (07)
41.216.an (07)
41.216.av (15)
4
4
41.216.av (15)
9
10
25.108.ag (22)
3
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84381280

LIVE FRONT AXLE

ASSY, 4WD Suspended, Incl 2 - 12

1шт.

See Axle Components also in Figure 25.100.AD (12), 25.102.AD (15), 25.108.AA (11), 25.108.AB (08), 25.108.AG (21), 25.108.AG (22), 41.106.AG (12), 41.216.AV (19), 55.047.AA (12)

1шт.

2

5198883

STEERING CYLINDER,Double Acting, 25mm Rod, 232.5mm Stroke

ASSY

2шт.

3

5171707

PIN,24.97mm OD x 91mm L

2шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

5

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

6

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

4шт.

7

11067376

SNAP RING,M25, Ext

2шт.

8

5198013

PIN,24.97mm OD x 100mm L

2шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

10

5191671

LUBE NIPPLE,45 Degree, M14 x 1.5

2шт.

11

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.

12

13000990

COLLAR,60mm - 80mm, Worm Gear

2шт.
