Запчасти Case IH PUMA 240 CVT (41.106.AG[13]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, TIE-ROD ASSY (41) - STEERING

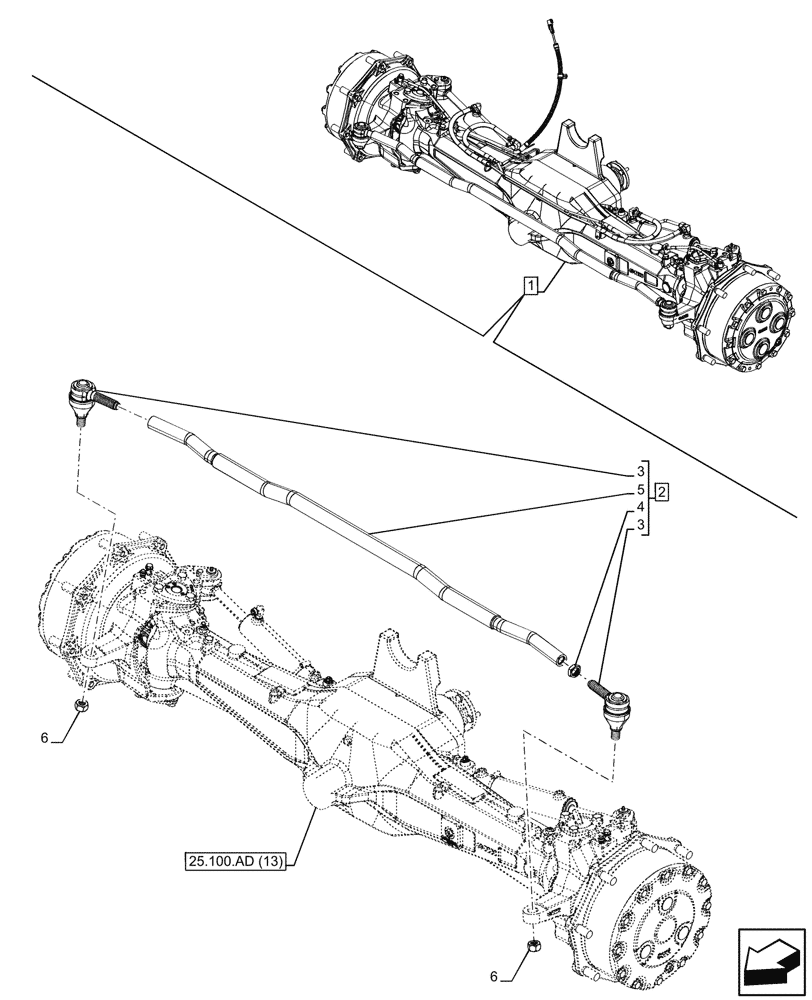

Схема запчастей Case IH PUMA 240 CVT - (41.106.AG[13]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, TIE-ROD ASSY (41) - STEERING
3
5
3
25.100.ad (13)
2
6
1
6
4

Артикул

Название

Примечание

Количество

1

84381282

LIVE FRONT AXLE

ASSY, 4WD Suspended W/ Brake, Incl 2 - 6

1шт.

See Axle Components also in Figure 25.100.AD (13), 25.102.AD (17), 25.108.AA (12), 25.108.AB (09), 25.108.AC (10), 25.108.AG (23), 25.108.AG (24), 25.108.AN (10), 33.204.AB (04), 33.204.AD (04), 33.204.AG (06), 41.216.AN (14), 41.216.AV (20), 55.047.AA (13)

1шт.

2

5198879

TRACK ROD ASSY,M24 x 1.5mm ID x 1634mm L

ASSY, Incl 3 - 5

1шт.

3

5198880

TRACK ROD END

2шт.

4

10726911

THIN NUT,Thin, M24 x 1.5 x 10.00mm High, ZND

1шт.

5

NSS

NOT SOLD SEPARAT

Rod, Incl in 2

1шт.

6

12577011

NUT,M20 x 1.5, Cl 8

2шт.

Выбрано товаров: 7
