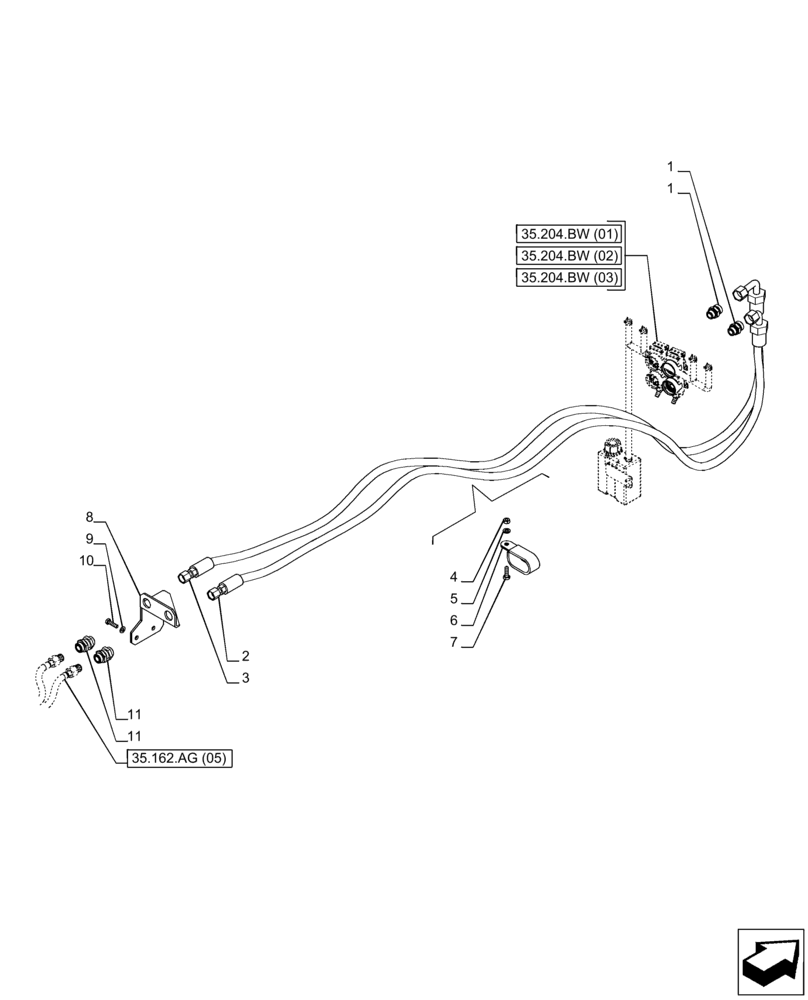

Запчасти Case IH PUMA 240 CVT (35.162.AG[09]) - VAR - 758088 - 3 POINT HITCH, FRONT, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

82019638

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

2шт.

2

87331296

FLEXIBLE HOSE

Raise, Years: -12-MAY-14

1шт.

2

47685448

HOSE

Raise, Start Year: 13-MAY-14

1шт.

3

87590684

FLEXIBLE HOSE

Lower, Years: -12-MAY-14

1шт.

3

47685466

HOSE

Lower, Start Year: 13-MAY-14

1шт.

4

15896211

NUT,M6, Cl 8

1шт.

5

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

6

82023568

CLAMP,2 Hoses

1шт.

7

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

8

84201723

SUPPORT

1шт.

9

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

10

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

11

82039603

HYD CONNECTOR

2шт.
