Запчасти Case IH PUMA 240 CVT (33.204.AG[06]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, BRAKE LINE (33) - BRAKES & CONTROLS

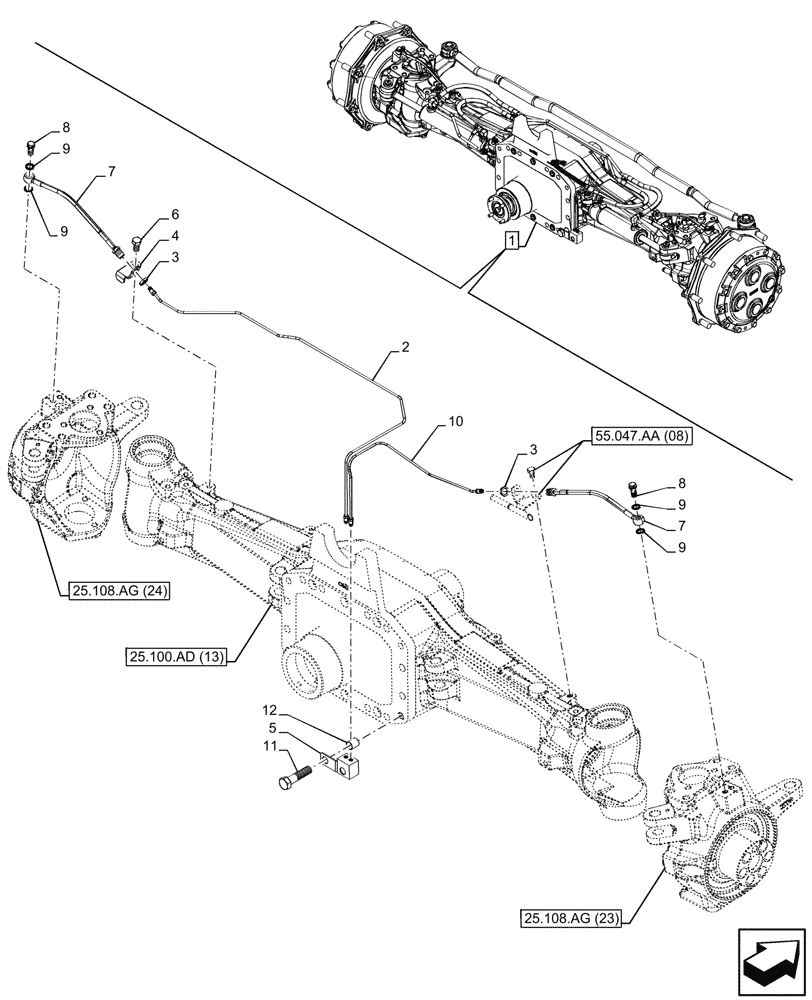

Схема запчастей Case IH PUMA 240 CVT - (33.204.AG[06]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, BRAKE LINE (33) - BRAKES & CONTROLS
10
25.108.ag (23)
25.108.ag (24)
7
25.100.ad (13)
2
7
3
9
12
1
55.047.aa (08)
4
8
11
9
3
9
9
5
6
8

Артикул

Название

Примечание

Количество

1

84381282

LIVE FRONT AXLE

ASSY, 4WD Suspended W/ Brake, Incl 2 - 12

1шт.

See Axle Components also in Figure 25.100.AD (09), 25.102.AD (10), 25.108.AA (08), 25.108.AB (03), 25.108.AC (08), 25.108.AG (15), 25.108.AG (16), 25.108.AN (08), 33.204.AB (03), 33.204.AD (03), 41.106.AG (09), 41.216.AN (10), 41.216.AV (16), 55.047.AA (09)

1шт.

2

87730130

RIGID TUBE

1шт.

3

10718111

THIN NUT,Thin, M16 x1.00mm, 8.00mm High, Cl 04

2шт.

4

87592752

BRACKET

LH

1шт.

5

87333539

SUPPORT

1шт.

6

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

7

47518869

FLEXIBLE HOSE

Brake Control

2шт.

8

47672278

BANJO BOLT,M12 x 1.25 x 25mm

2шт.

9

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

4шт.

10

87592861

RIGID TUBE,4.76 mm ID

1шт.

11

15984731

BOLT,Hex, M18 x 1.5 x 75mm, Cl 10.9

1шт.

12

47127963

SPACER

1шт.

Выбрано товаров: 13
