Запчасти Case IH PUMA 240 CVT (25.108.AG[19]) - VAR - 391157 - 4WD FRONT AXLE, STEERING KNUCKLE, RH (25) - FRONT AXLE SYSTEM

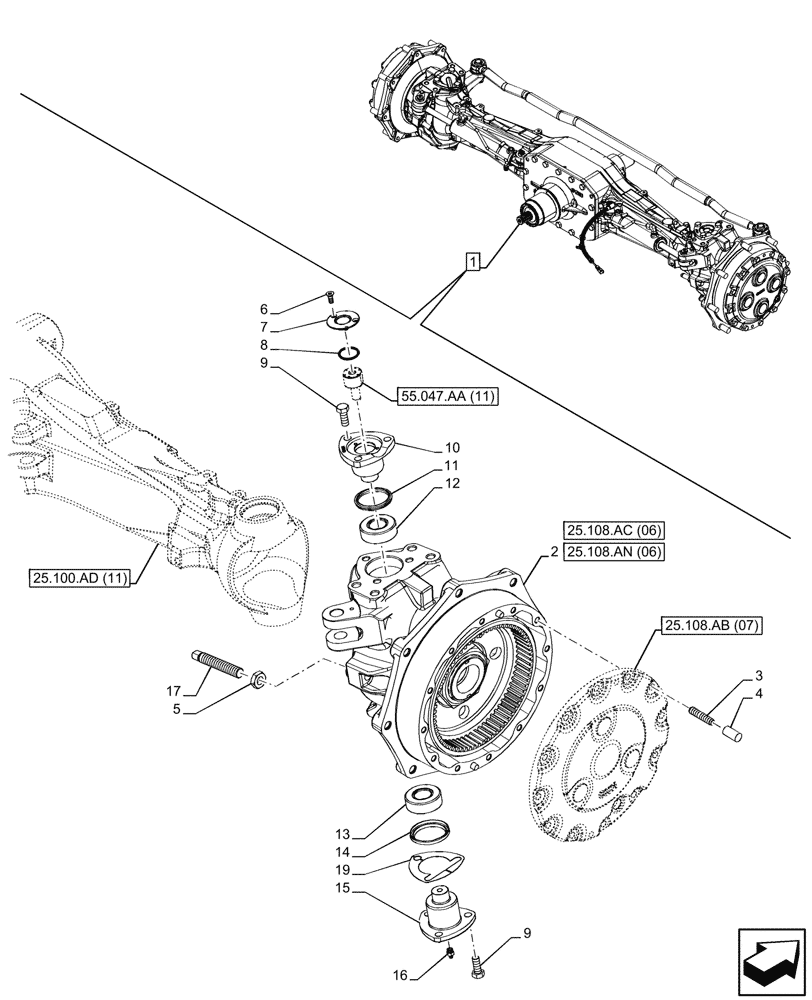

Схема запчастей Case IH PUMA 240 CVT - (25.108.AG[19]) - VAR - 391157 - 4WD FRONT AXLE, STEERING KNUCKLE, RH (25) - FRONT AXLE SYSTEM
11
25.100.ad (11)
14
55.047.aa (11)
4
8
9
13
2
25.108.ab (07)
19
7
25.108.an (06)
15
6
3
12
9
17
1
5
25.108.ac (06)
10
16

Артикул

Название

Примечание

Количество

1

84381257

LIVE FRONT AXLE

ASSY, 4WD Standard, Incl 2 - 18

1шт.

See Axle Components also in Figure 25.100.AD (11), 25.102.AD (13), 25.108.AA (10), 25.108.AB (07), 25.108.AG (20), 41.106.AG (11), 41.216.AN (12), 41.216.AV (18), 55.047.AA (11)

1шт.

2

84188828

KNUCKLE,RH

ASSY, RH

1шт.

3

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

8шт.

4

NSS

NOT SOLD SEPARAT

8шт.

5

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

1шт.

6

14254434

SCREW,Hex, M14 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

7

13407211

LUBE NIPPLE,M10 x 1

1шт.

8

87382381

BALL STUD

1шт.

9

87382384

BALL STUD

6шт.

10

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

1шт.

11

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

1шт.

12

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

1шт.

13

5137115

SHIM,0.15mm Thk

1шт.

14

5137116

SHIM,70.5mm ID x 115mm OD x 0.2mm Thk

1шт.

15

5137117

SHIM,70.5mm ID x 115mm OD x 0.25mm Thk

1шт.

16

5137118

SHIM,70.5mm ID x 115mm OD x 0.3mm Thk

1шт.

17

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

1шт.

18

87751874

ADJUSTMENT SCREW,M18 x 120mm, Cl 10.9

2шт.

Выбрано товаров: 19
