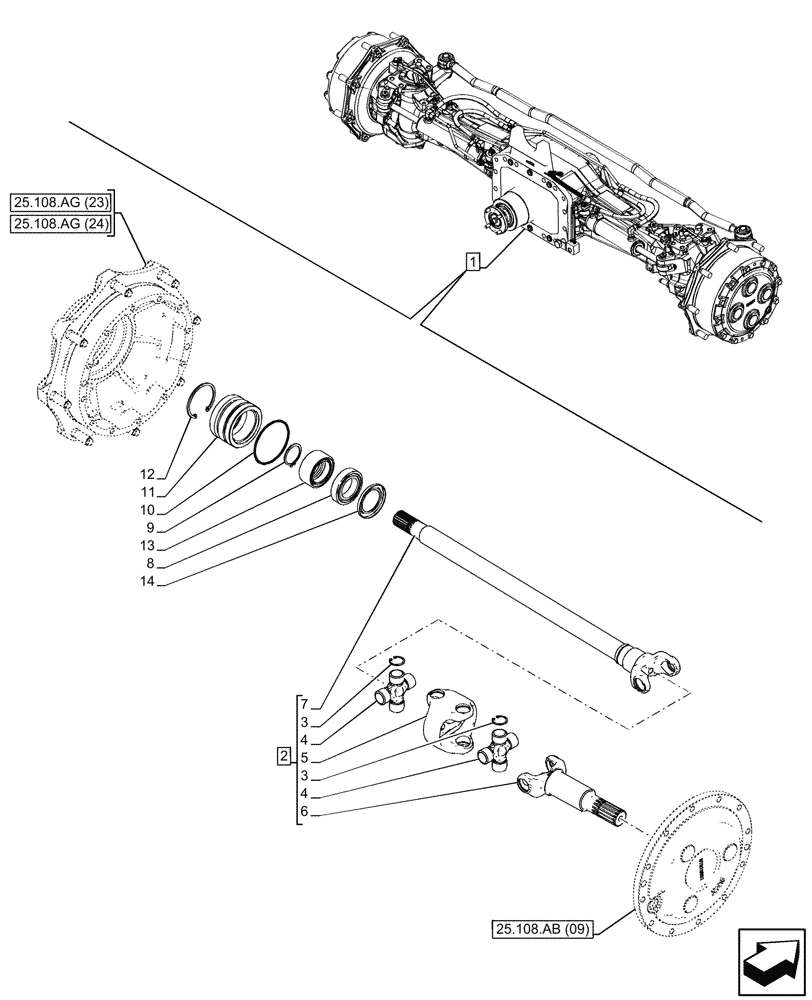

Запчасти Case IH PUMA 240 CVT (25.108.AA[12]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, SHAFT (25) - FRONT AXLE SYSTEM

1

84381282

LIVE FRONT AXLE

ASSY, 4WD Suspended W/ Brake, Incl 2 - 14

1шт.

See Axle Components also in Figure 25.100.AD (13), 25.102.AD (17), 25.108.AB (09), 25.108.AC (10), 25.108.AG (23), 25.108.AG (24), 25.108.AN (10), 33.204.AB (04), 33.204.AD (04), 33.204.AG (06), 41.106.AG (13), 41.216.AN (14), 41.216.AV (20), 55.047.AA (13)

1шт.

2

84184113

AXLE-SHAFT, ARTICULA

ASSY, LH, Incl 3 - 7

1шт.

2

84184102

AXLE-SHAFT, ARTICULA

ASSY, RH, Incl 3 - 7

1шт.

3

5191452

LOCKING RING

8шт.

4

47558291

SPIDER

2шт.

5

87568624

U-JOINT SPIDER

1шт.

6

84189184

SHAFT

1шт.

7

84189223

SHAFT

LH

1шт.

7

84189264

SHAFT

RH

1шт.

8

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

1шт.

9

5123651

SNAP RING,36mm, External

1шт.

10

87421145

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

11

84181579

BUSHING,60mm ID x 95mm OD x 52mm L

1шт.

12

11061376

SNAP RING,M68, Int

1шт.

13

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

1шт.

14

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

1шт.
