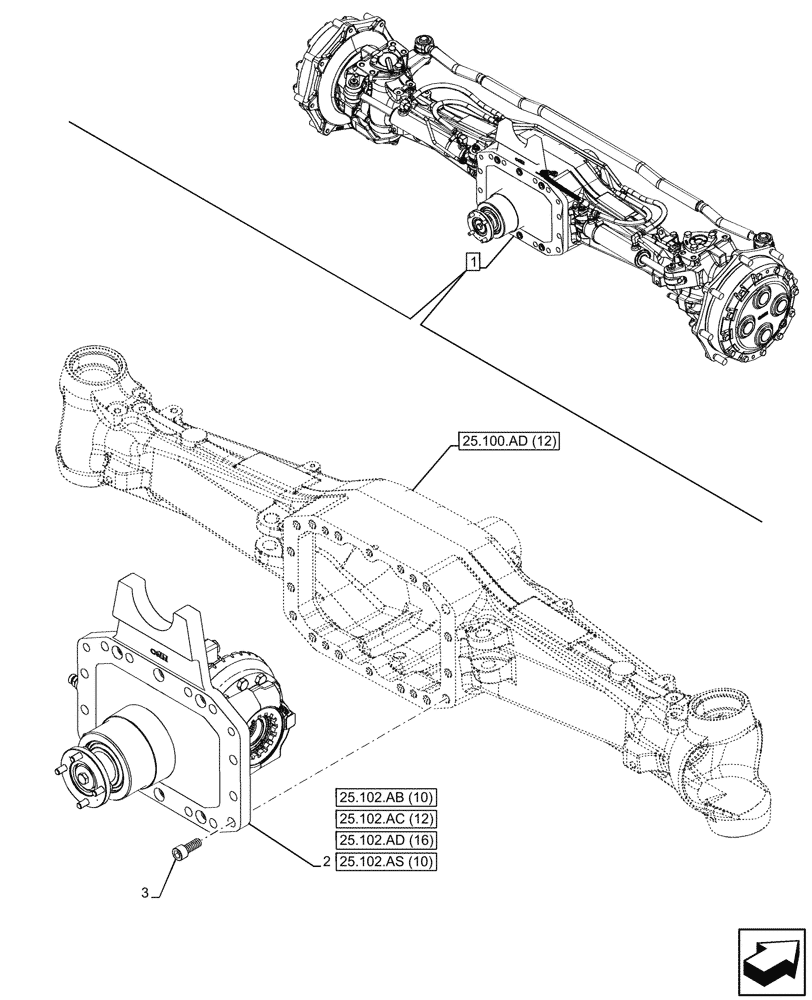

Схема запчастей Case IH PUMA 240 CVT - (25.102.AD[15]) - VAR - 758048 - SUSPENDED FRONT AXLE, DIFFERENTIAL (25) - FRONT AXLE SYSTEM

25.102.ad (16)

25.102.ac (12)

25.102.as (10)

25.102.ab (10)

25.100.ad (12)

84381280

LIVE FRONT AXLE

ASSY, 4WD Suspended, Incl 2, 3

1шт.

See Axle Components also in Figure 25.100.AD (12), 25.108.AA (11), 25.108.AB (08), 25.108.AG (21), 25.108.AG (22), 41.106.AG (12), 41.216.AN (13), 41.216.AV (19), 55.047.AA (12)

1шт.

84371356

DIFFERENTIAL

ASSY

1шт.

14313734

HEX SOC SCREW,M16 x 1.5 x 40mm, Cl 10.9

6шт.

Выбрано товаров: 4
