(25.102.AD[13]) - VAR - 391157 - 4WD FRONT AXLE, DIFFERENTIAL

Запчасти Case IH PUMA 240 CVT (25.102.AD[13]) - VAR - 391157 - 4WD FRONT AXLE, DIFFERENTIAL (25) - FRONT AXLE SYSTEM

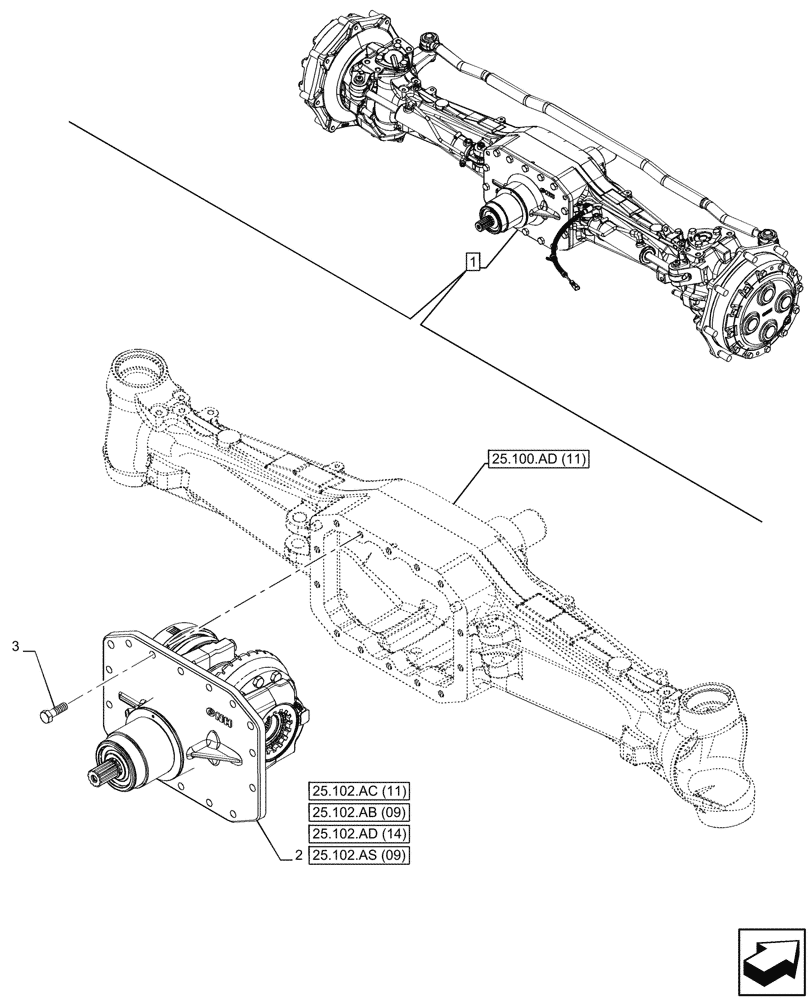

Схема запчастей Case IH PUMA 240 CVT - (25.102.AD[13]) - VAR - 391157 - 4WD FRONT AXLE, DIFFERENTIAL (25) - FRONT AXLE SYSTEM
25.102.ac (11)
2
25.102.ad (14)
25.102.as (09)
25.102.ab (09)
3
1
25.100.ad (11)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84381257

LIVE FRONT AXLE

ASSY, 4WD Standard, Incl 2, 3

1шт.

See Axle Components also in Figure 25.100.AD (11), 25.108.AA (10), 25.108.AB (07), 25.108.AG (19), 25.108.AG (20), 41.106.AG (11), 41.216.AN (12), 41.216.AV (18), 55.047.AA (11)

1шт.

2

84371431

DIFFERENTIAL ASSY

ASSY

1шт.

3

14254734

LOCK BOLT,Hex, M14 x 1.5 x 45mm, Cl 10.9

14шт.

Выбрано товаров: 4
