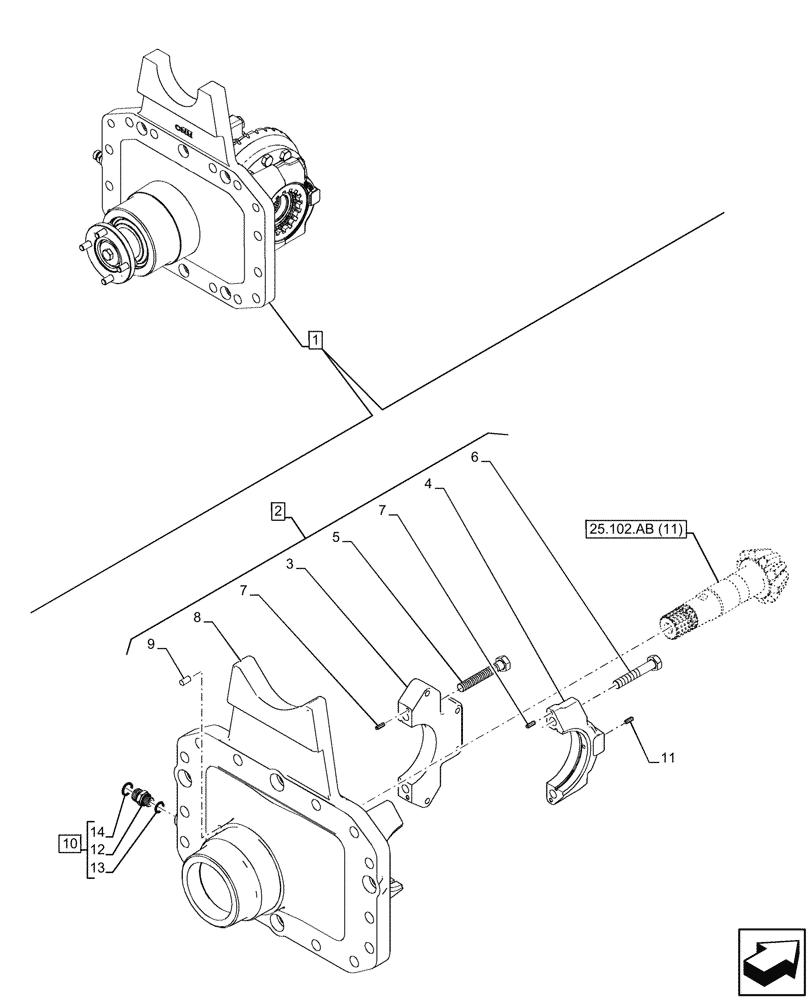

Запчасти Case IH PUMA 240 CVT (25.102.AC[13]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, DIFFERENTIAL, DIFFERENTIAL CARRIER (25) - FRONT AXLE SYSTEM

1

84371356

DIFFERENTIAL

ASSY, Incl 2 - 14

1шт.

See Differential Components also in Figure 25.102.AB (11), 25.102.AD (18), 25.102.AS (11)

1шт.

2

84565069

SUPPORT

ASSY, Incl 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Differential Gearing Support, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Differential Gearing Support, Incl in 2

1шт.

5

14255734

SCREW,Hex, M14 x 1.5 x 90mm, Cl 10.9

2шт.

6

14255334

SCREW,Hex, M14 x 1.5 x 75mm, Cl 10.9

2шт.

7

4966244

PIN,5mm OD x 15mm L

4шт.

8

NSS

NOT SOLD SEPARAT

Differential Support, Incl in 2

1шт.

9

10268350

PLUG

1шт.

10

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

ASSY, Incl 12 - 14

1шт.

11

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

1шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

13

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.
