Запчасти Case IH PUMA 240 CVT (21.120.AB[05]) - VAR - 337427, 337433, 391138, 758022 - GEARBOX, CVT (21) - TRANSMISSION

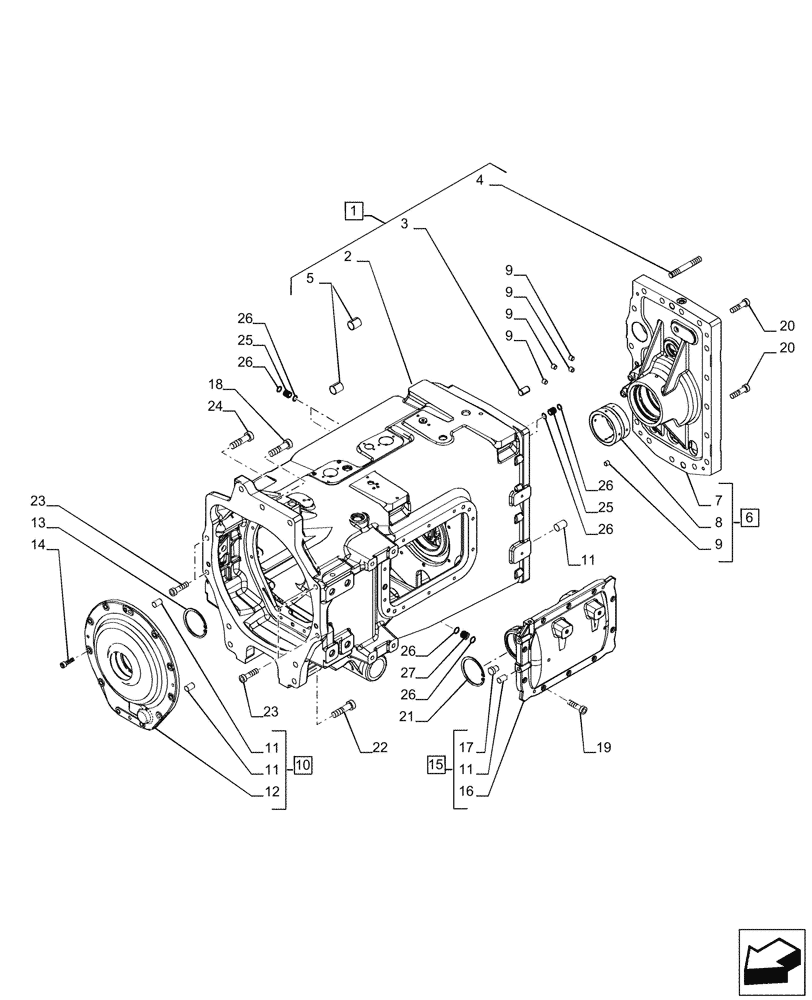

Схема запчастей Case IH PUMA 240 CVT - (21.120.AB[05]) - VAR - 337427, 337433, 391138, 758022 - GEARBOX, CVT (21) - TRANSMISSION
26
10
20
17
11
8
11
26
2
4
12
5
3
26
9
14
9
27
22
1
11
9
9
25
26
7
23
18
16
26
19
21
11
24
9
26
23
25
15
6
20
13

Артикул

Название

Примечание

Количество

1

84594395

GEARBOX

ASSY, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Gearbox, Incl in 1

1шт.

3

5185790

DOWEL,18mm OD x 30mm L

2шт.

4

13973034

STUD,M16 x 1.5 x 90, 10.9 DAC

17шт.

5

87552010

BUSHING,24mm ID x 27mm OD x 30mm

2шт.

6

87650192

COVER

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Spacer, Incl in 6

1шт.

8

87528657

BUSHING,90mm ID x 110mm OD x 59,5mm L

1шт.

9

10275504

HEX PLUG

6шт.

10

84123542

COVER

ASSY, Incl 11 (Q.ty 2), 12

1шт.

11

5153109

DOWEL,10mm OD x 15mm L

4шт.

12

NSS

NOT SOLD SEPARAT

Top, Incl in 10

1шт.

13

11062476

SNAP RING,M90, Int

1шт.

14

14307620

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

9шт.

15

84414270

FLANGE COVER CAP

ASSY, Incl 11 (Q.ty 2), 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

3шт.

18

15981234

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

1шт.

19

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

10шт.

20

14331434

SCREW,M12 x 1.25 x 45mm, Cl 10.9, Full Thd

2шт.

21

87567449

SNAP RING,M82.6, Ext

Size 80

1шт.

22

15835234

BOLT,Hex, M16 x 1.5 x 70mm, Cl 10.9

4шт.

23

15982134

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

4шт.

24

15982334

BOLT,Hex, M16 x 1.5 x 150mm, Cl 10.9

2шт.

25

87561328

BUSHING,11mm ID x 13mm OD x 14mm L

4шт.

26

14453080

O-RING,0.426" ID x 0.07"

10шт.

27

87567456

BUSHING,6.5mm ID x 14.4mm OD x 14mm L

1шт.

Выбрано товаров: 27
