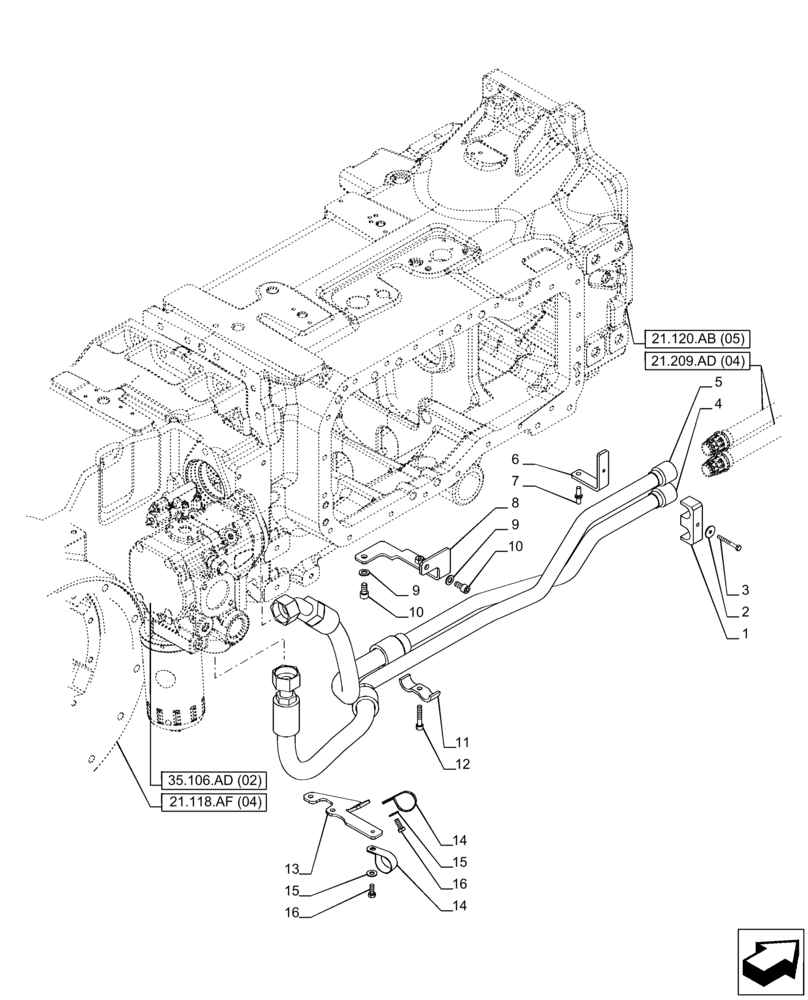

Запчасти Case IH PUMA 240 CVT (21.109.AD[03]) - VAR - 337427, 337433, 391138, 758022 - TRANSMISSION, OIL COOLER, LINE (21) - TRANSMISSION

1

87608298

CLAMP BRACKET

1шт.

2

12640624

WASHER,6.15mm ID x 25mm OD x 2mm Thk

6 x 25 x 2

1шт.

3

10903724

BOLT,M6 x 55, 8.8

1шт.

4

84473840

HYD TUBE

Oil Cooler Supply

1шт.

5

84496253

HOSE

Oil Cooler Return

1шт.

6

87608297

BRACKET

1шт.

7

87316808

STUD,M8 x 1.25mm

M8

1шт.

8

84473823

BRACKET

1шт.

9

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

10

14307324

HEX SOC SCREW,M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

11

84238526

CLAMP BRACKET

1шт.

12

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

1шт.

13

84319208

BRACKET

1шт.

14

87648719

CLAMP,36.5mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

15

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

16

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.
