(55.047.AA[12]) - VAR - 758048 - SUSPENDED FRONT AXLE, STEERING, SENSOR

Запчасти Case IH PUMA 240 CVT (55.047.AA[12]) - VAR - 758048 - SUSPENDED FRONT AXLE, STEERING, SENSOR (55) - ELECTRICAL SYSTEMS

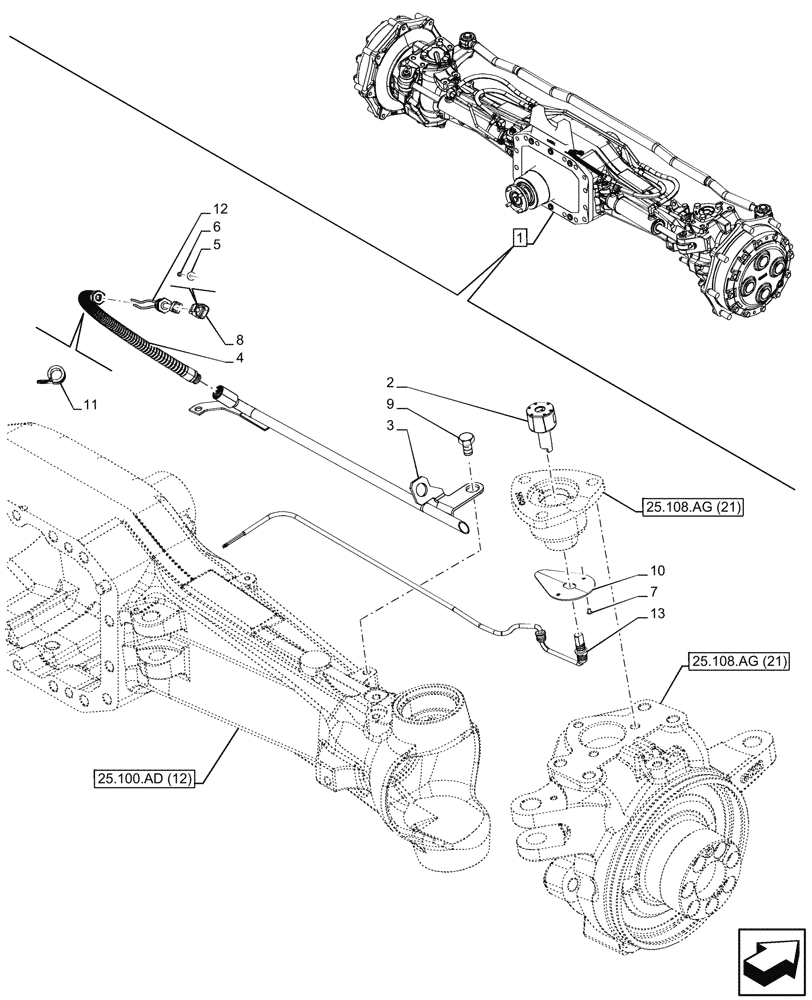

Схема запчастей Case IH PUMA 240 CVT - (55.047.AA[12]) - VAR - 758048 - SUSPENDED FRONT AXLE, STEERING, SENSOR (55) - ELECTRICAL SYSTEMS
25.100.ad (12)
8
1
13
11
5
4
2
12
10
25.108.ag (21)
6
9
3
25.108.ag (21)
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84381280

LIVE FRONT AXLE

ASSY, 4WD Suspended, Incl 2 - 13

1шт.

See Axle Components also in Figure 25.100.AD (12), 25.102.AD (15), 25.108.AA (11), 25.108.AB (08), 25.108.AG (21), 25.108.AG (22), 41.106.AG (12), 41.216.AN (13), 41.216.AV (19)

1шт.

2

87627614

SENSOR

Steering Position

1шт.

3

87717578

HYD TUBE,12 mm OD x 408, 51.7 mm L

1шт.

4

87619680

FLEXIBLE SHEATH

1шт.

5

82918451

SPACER

1шт.

6

82918419

PLUG

1шт.

7

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.

8

82918426

ELEC CONNECTOR,Female

1шт.

9

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

10

87315098

SHIELD

1шт.

11

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

12

87619627

HOSE PROTECTION

1шт.

13

87635259

ELEC CONNECTOR,Male

1шт.
