Запчасти Case IH PUMA 240 CVT (55.047.AA[11]) - VAR - 391157 - 4WD FRONT AXLE, STEERING, SENSOR (55) - ELECTRICAL SYSTEMS

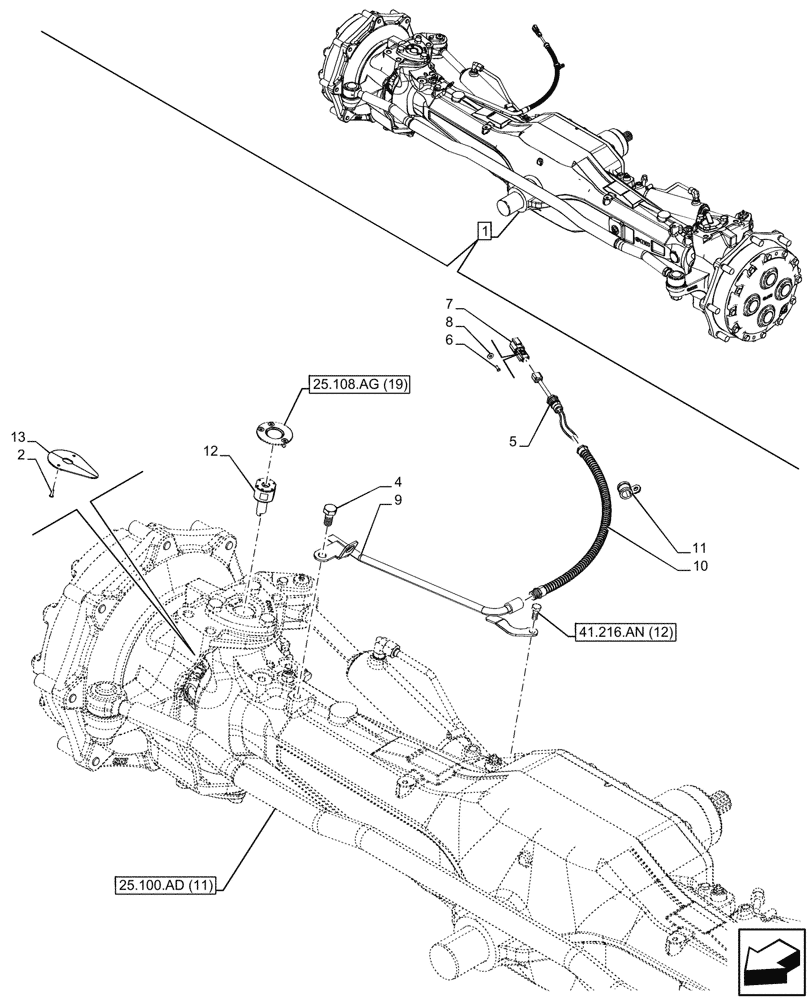

Схема запчастей Case IH PUMA 240 CVT - (55.047.AA[11]) - VAR - 391157 - 4WD FRONT AXLE, STEERING, SENSOR (55) - ELECTRICAL SYSTEMS
5
2
11
12
41.216.an (12)
25.100.ad (11)
25.108.ag (19)
4
9
6
1
8
10
13
7

Артикул

Название

Примечание

Количество

1

84381257

LIVE FRONT AXLE

ASSY, 4WD Standard, Incl 2 - 13

1шт.

See Axle Components also in Figure 25.100.AD (11), 25.102.AD (13), 25.108.AA (10), 25.108.AB (07), 25.108.AG (19), 25.108.AG (20), 41.106.AG (11), 41.216.AN (12), 41.216.AV (18)

1шт.

2

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.

3

84472045

FLEXIBLE SHEATH

1шт.

4

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

87627624

ELEC CONNECTOR,Male

1шт.

6

82918419

PLUG

1шт.

7

82918426

ELEC CONNECTOR,Female

1шт.

8

82918451

SPACER

1шт.

9

87592753

RIGID TUBE,10 mm ID x 12 mm OD x 368.4, 51 mm L

1шт.

10

87619627

HOSE PROTECTION

1шт.

11

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

12

87627614

SENSOR

Steering Position

1шт.

13

87315098

SHIELD

1шт.

Выбрано товаров: 14
