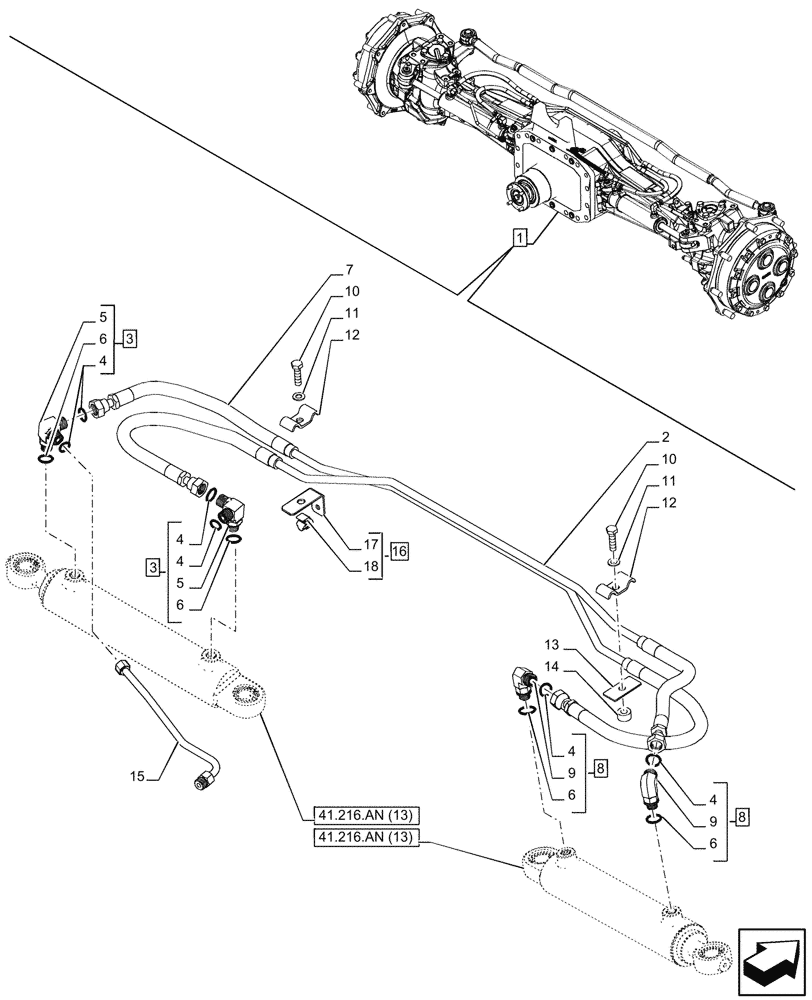

Запчасти Case IH PUMA 240 CVT (41.216.AV[19]) - VAR - 758048 - SUSPENDED FRONT AXLE, STEERING CYLINDER, HYDRAULIC LINE (41) - STEERING

1

84381280

LIVE FRONT AXLE

ASSY, 4WD Suspended, Incl 2 - 18

1шт.

See Axle Components also in Figure 25.100.AD (12), 25.102.AD (15), 25.108.AA (11), 25.108.AB (08), 25.108.AG (21), 25.108.AG (22), 41.106.AG (12), 41.216.AN (13), 55.047.AA (12)

1шт.

2

5188440

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

Right Steering

1шт.

3

5188443

90 ELBOW

ASSY, Incl 4 (Q.ty 2), 5, 6 (Q.ty 1)

2шт.

4

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

6

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

7

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.

8

47127165

90 ELBOW

ASSY, Incl 4 (Q.ty 2), 6 (Q.ty 1), 9

2шт.

9

5188439

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

Left Steering

1шт.

10

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

12

5188504

BRACKET

2шт.

13

5188503

BRACKET

1шт.

14

13605811

SPACER,8.50mm ID x 18.00mm OD x 10.00mm, STL, ZND

2шт.

15

84233089

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

Steering Cylinder

1шт.

16

87730142

BRACKET

ASSY, Incl 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

Bracket, Incl in 16

1шт.

18

14571780

CLIP

1шт.
