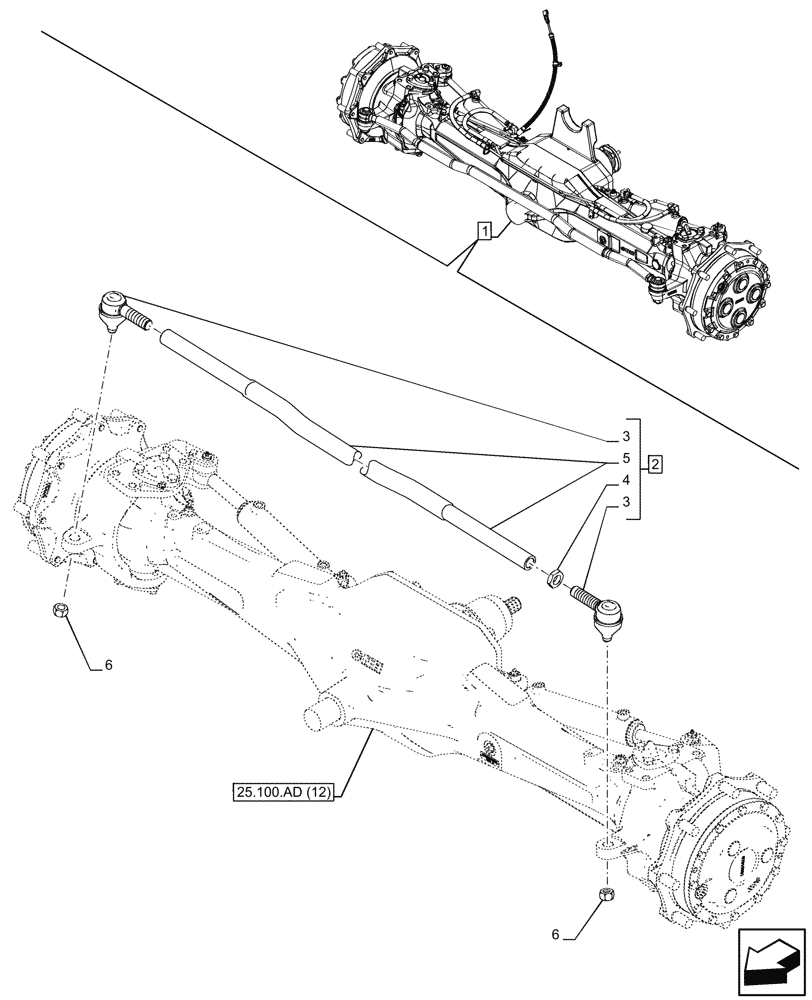

Запчасти Case IH PUMA 240 CVT (41.106.AG[12]) - VAR - 758048 - SUSPENDED FRONT AXLE, TIE-ROD ASSY (41) - STEERING

1

84381280

LIVE FRONT AXLE

ASSY, 4WD Suspended, Incl 2 - 6

1шт.

See Axle Components also in Figure 25.100.AD (12), 25.102.AD (15), 25.108.AA (11), 25.108.AB (08), 25.108.AG (21), 25.108.AG (22), 41.216.AN (13), 41.216.AV (19), 55.047.AA (12)

1шт.

2

5198879

TRACK ROD ASSY,M24 x 1.5mm ID x 1634mm L

ASSY, Incl 3 - 5

1шт.

3

5198880

TRACK ROD END

2шт.

4

10726911

THIN NUT,Thin, M24 x 1.5 x 10.00mm High, ZND

1шт.

5

NSS

NOT SOLD SEPARAT

Rod, Incl in 2

1шт.

6

12577011

NUT,M20 x 1.5, Cl 8

2шт.
