Запчасти Case IH PUMA 240 CVT (35.106.AD[03]) - VAR - 391161 - VARIABLE DELIVERY HYDRAULIC PUMP, 120 L/MIN (35) - HYDRAULIC SYSTEMS

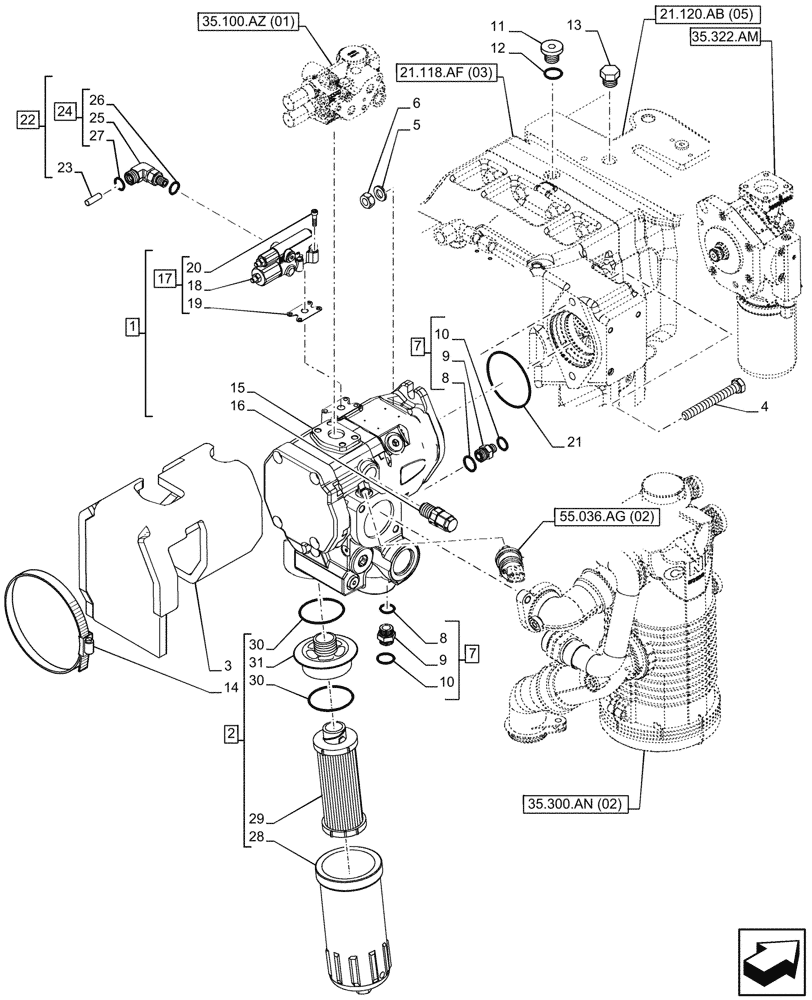

Схема запчастей Case IH PUMA 240 CVT - (35.106.AD[03]) - VAR - 391161 - VARIABLE DELIVERY HYDRAULIC PUMP, 120 L/MIN (35) - HYDRAULIC SYSTEMS
21.118.af (03)
23
31
24
18
9
30
3
8
7
26
11
14
27
28
13
19
7
25
8
2
22
9
29
4
10
21
10
5
12
30
20
15
6
1
16
17
55.036.ag (02)
35.322.am
35.300.an (02)
35.100.az (01)
21.120.ab (05)

Артикул

Название

Примечание

Количество

1

84353098

HYDRAULIC PUMP,56 CC

ASSY, Incl 15 - 20

1шт.

1

84353098R

REMAN-HYD PUMP

56 CC

1шт.

1

84353098C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

84341286

HYDRAULIC OIL FILTER,289.5mm L

ASSY, Incl 28 - 31

1шт.

AFTER THE FIRST 50 HOURS REPLACE THE FILTER WITH: PN 84417137 - Housing / PN 84417139 - Filter Cartridge / PN 84550359 - Filter O Ring; FOR OTHER TIME REPLACE THE FILTER WITH: PN 84417139 - Filter Cartridge / PN 84550359 - Filter O Ring

1шт.

3

84212218

NOISE PROTECTION

1шт.

4

15978121

BOLT,Hex, M14 x 1.5 x 120mm, Cl 8.8

2шт.

5

10730821

WASHER,Flat, 14.40mm ID x 26.00mm OD x 3.00mm, R80, ZND

2шт.

6

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

2шт.

7

86579685

HYD CONNECTOR,1 11/16"-12 ORFS x M42 x 2 ORB

ASSY, Incl 8 - 10

2шт.

8

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

10

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

11

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

12

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

13

10273140

PLUG,Hex Skt, M18 x 1.5

1шт.

14

14569387

HOSE CLIP

5шт.

15

NSS

NOT SOLD SEPARAT

Pump, Incl in 1

1шт.

16

47511121

VALVE PRESSURE RELIE

1шт.

17

47616157

COMPENSATOR

ASSY, Incl 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

Compensator, Incl in 17

1шт.

19

84209778

GASKET

1шт.

20

NSS

NOT SOLD SEPARAT

Screw, Incl in 17

4шт.

21

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

22

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

ASSY, Incl 23 - 27

1шт.

23

47126655

FILTER STRAINER

1шт.

24

47126658

90 ELBOW,9/16"-18 ORFS x 7/16"-20

ASSY, Incl 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

Elbow, Incl in 24

1шт.

26

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

27

5185507

O-RING,8.92mm ID x 1.83mm Width

1шт.

28

84417137

FILTER BOWL

1шт.

29

84417139

ELEMENT,267.5mm L, 11 Micron

1шт.

30

84550359

O-RING,84.50mm ID x 3.00mm

2шт.

31

NSS

NOT SOLD SEPARAT

Adapter, Incl in 2

1шт.

Выбрано товаров: 34
