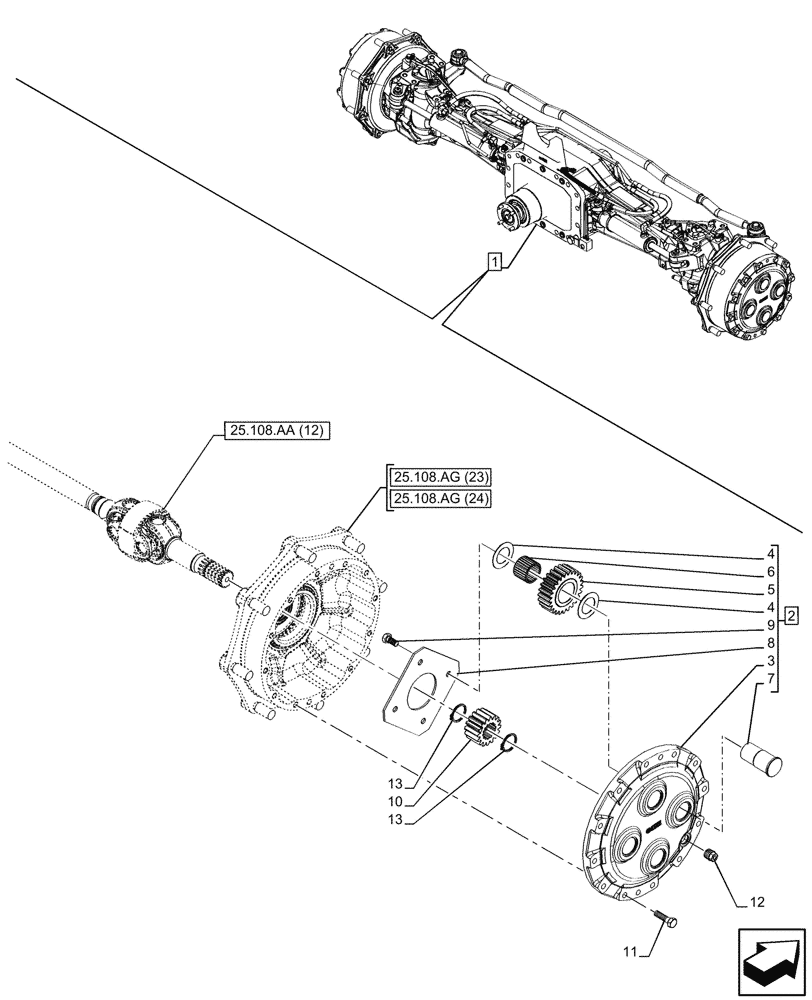

Запчасти Case IH PUMA 240 CVT (25.108.AB[09]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, PLANETARY GEAR (25) - FRONT AXLE SYSTEM

1

84381282

LIVE FRONT AXLE

ASSY, 4WD Standard, Incl 2 - 13

1шт.

See Axle Components also in Figure 25.100.AD (13), 25.102.AD (17), 25.108.AA (12), 25.108.AC (10), 25.108.AG (23), 25.108.AG (24), 25.108.AN (10), 33.204.AB (04), 33.204.AD (04), 33.204.AG (06), 41.106.AG (13), 41.216.AN (14), 41.216.AV (20), 55.047.AA (13)

1шт.

2

87576872

PLANETARY REDUCER

ASSY, Incl 3 - 9

1шт.

3

87576875

SUPPORT

1шт.

4

87576870

THRUST WASHER

8шт.

5

87576871

IDLER PINION

4шт.

6

87576874

ROLLER BEARING,38.2mm ID x 48.2mm OD x 35.5mm W

4шт.

7

87576864

PIN

4шт.

8

87576876

PLATE

1шт.

9

14274424

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

10

84262815

PLANETARY GEAR

1шт.

11

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

12шт.

12

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

13

5123651

SNAP RING,36mm, External

2шт.
