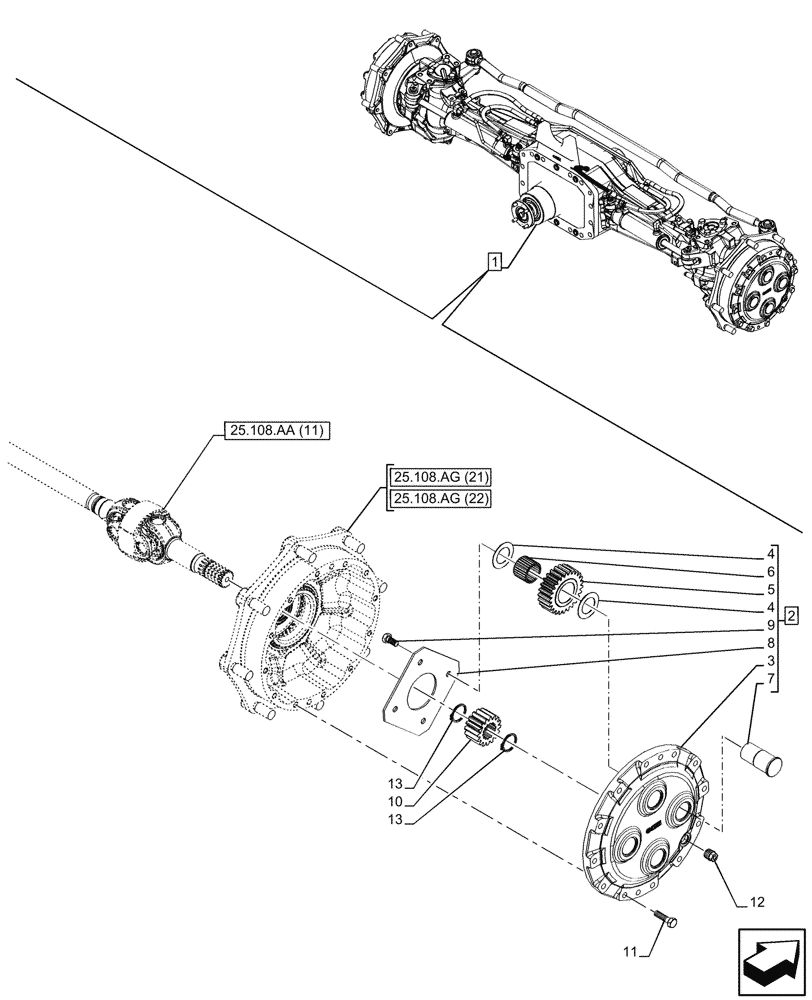

Запчасти Case IH PUMA 240 CVT (25.108.AB[08]) - VAR - 758048 - SUSPENDED FRONT AXLE, PLANETARY GEAR (25) - FRONT AXLE SYSTEM

1

84381280

LIVE FRONT AXLE

ASSY, 4WD Standard, Incl 2 - 13

1шт.

See Axle Components also in Figure 25.100.AD (12), 25.102.AD (15), 25.108.AA (11), 25.108.AG (21), 25.108.AG (22), 41.106.AG (12), 41.216.AN (13), 41.216.AV (19), 55.047.AA (12)

1шт.

2

87576872

PLANETARY REDUCER

ASSY, Incl 3 - 9

1шт.

3

87576875

SUPPORT

1шт.

4

87576870

THRUST WASHER

8шт.

5

87576871

IDLER PINION

4шт.

6

87576874

ROLLER BEARING,38.2mm ID x 48.2mm OD x 35.5mm W

4шт.

7

87576864

PIN

4шт.

8

87576876

PLATE

1шт.

9

14274424

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

10

84262815

PLANETARY GEAR

1шт.

11

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

12шт.

12

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

13

5123651

SNAP RING,36mm, External

2шт.
