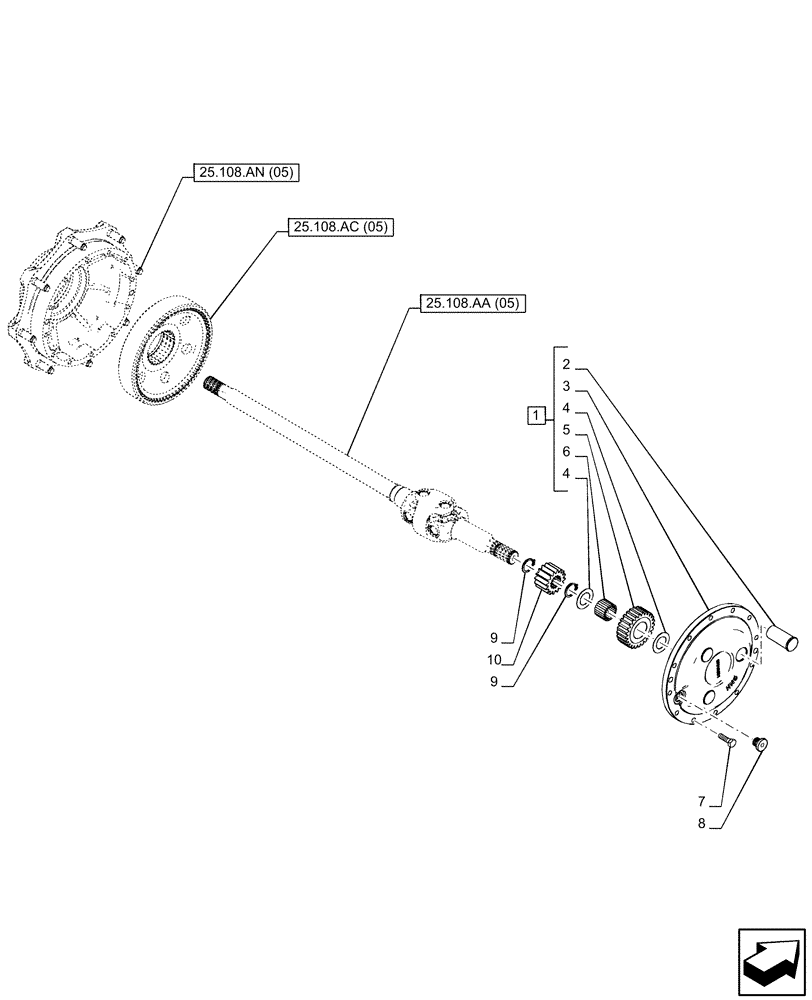

Запчасти Case IH PUMA 240 CVT (25.108.AB[06]) - VAR - 337416 - SUSPENDED FRONT AXLE, W/ BRAKE, PLANETARY GEAR (25) - FRONT AXLE SYSTEM

1

87576872

PLANETARY REDUCER

ASSY, Incl 2 - 6

1шт.

2

87576864

PIN

4шт.

3

NSS

NOT SOLD SEPARAT

Carrier, Incl in 1

1шт.

4

87576870

THRUST WASHER

8шт.

5

87576871

IDLER PINION

4шт.

6

87576874

ROLLER BEARING,38.2mm ID x 48.2mm OD x 35.5mm W

4шт.

7

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

12шт.

8

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

9

5123651

SNAP RING,36mm, External

2шт.

10

84262815

PLANETARY GEAR

1шт.
