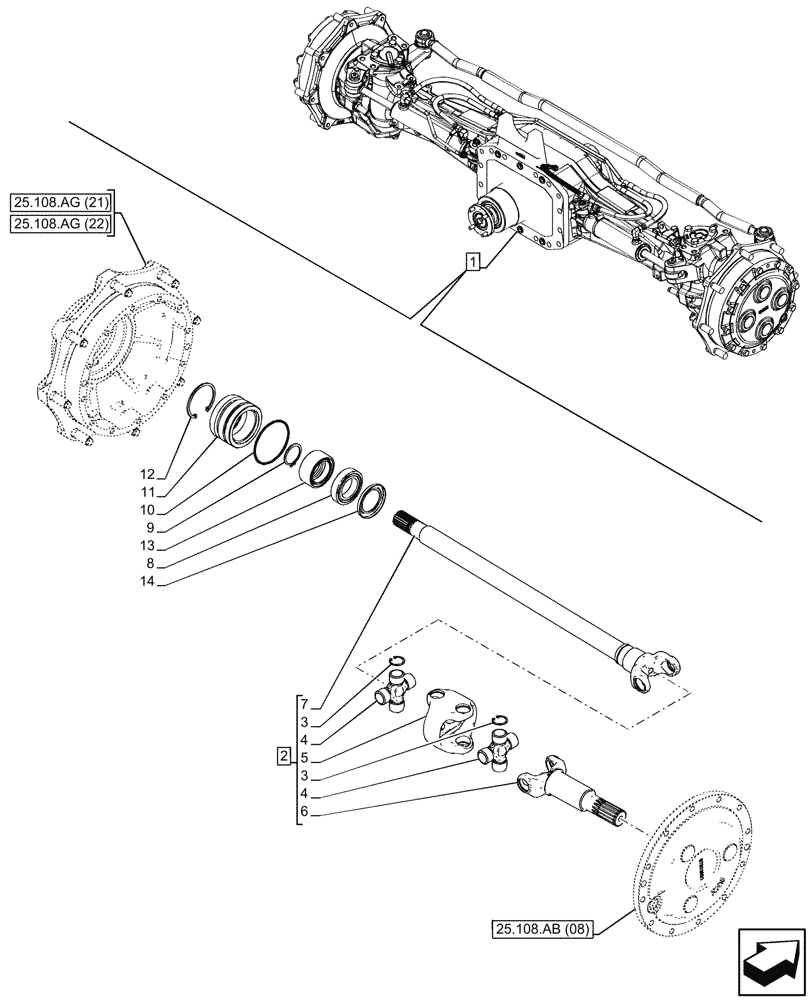

Запчасти Case IH PUMA 240 CVT (25.108.AA[11]) - VAR - 758048 - SUSPENDED FRONT AXLE, SHAFT (25) - FRONT AXLE SYSTEM

1

84381280

LIVE FRONT AXLE

ASSY, 4WD Suspended, Incl 2 - 14

1шт.

See Axle Components also in Figure 25.100.AD (12), 25.102.AD (15), 25.108.AB (08), 25.108.AG (21), 25.108.AG (22), 41.106.AG (12), 41.216.AN (13), 41.216.AV (19), 55.047.AA (12)

1шт.

2

84184133

AXLE-SHAFT, ARTICULA

ASSY, LH, Incl 3 - 7

1шт.

2

84184130

AXLE-SHAFT, ARTICULA

ASSY, RH, Incl 3 - 7

1шт.

3

5191452

LOCKING RING

8шт.

4

47558291

SPIDER

2шт.

5

87568624

U-JOINT SPIDER

1шт.

6

84189307

ARTICULATED SHAFT

1шт.

7

84189223

SHAFT

LH

1шт.

7

84189264

SHAFT

RH

1шт.

8

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

1шт.

9

5123651

SNAP RING,36mm, External

1шт.

10

87421145

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

11

84181579

BUSHING,60mm ID x 95mm OD x 52mm L

1шт.

12

11061376

SNAP RING,M68, Int

1шт.

13

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

1шт.

14

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

1шт.
