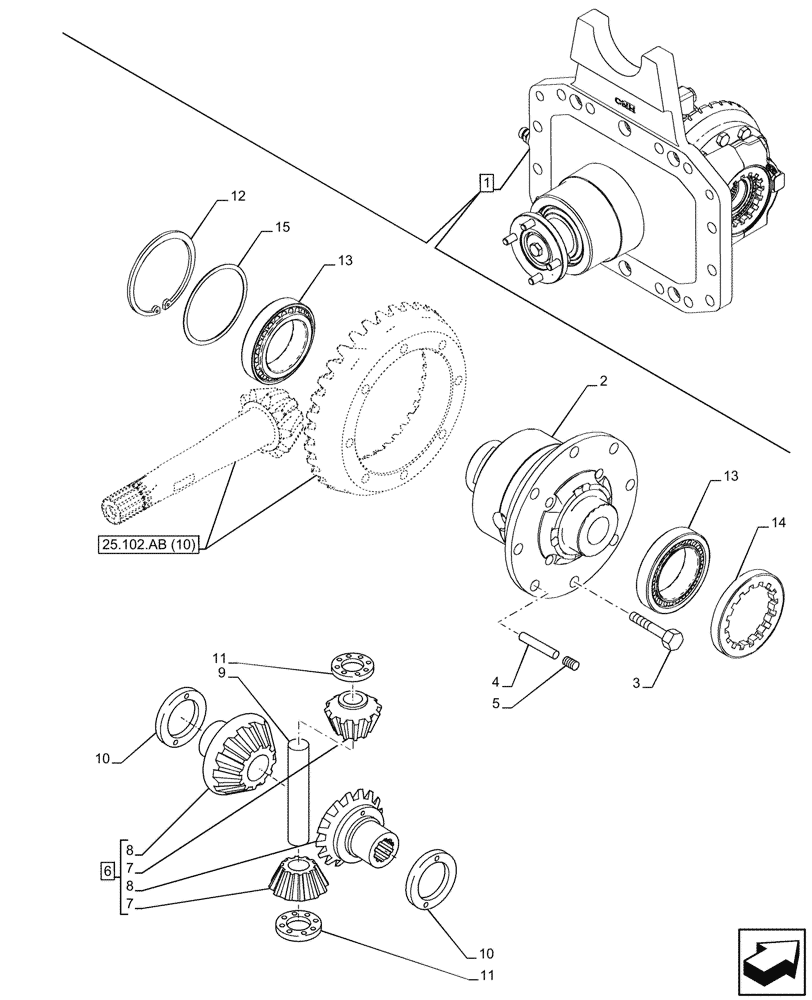

Запчасти Case IH PUMA 240 CVT (25.102.AD[16]) - VAR - 758048 - SUSPENDED FRONT AXLE, DIFFERENTIAL, HOUSING (25) - FRONT AXLE SYSTEM

1

84371356

DIFFERENTIAL

ASSY, Incl 2 - 15

1шт.

See Differential Components also in Figure 25.102.AB (10), 25.102.AC (12), 25.102.AS (10)

1шт.

2

87342770

HOUSING

1шт.

3

84170038

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

12шт.

4

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

5

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

6

87381508

GEAR SET

ASSY, Incl 7, 8

1шт.

7

4991695

IDLER PINION

2шт.

8

5149551

PLANETARY GEAR,19T

2шт.

9

4991652

PIN,23mm OD x 157mm L

1шт.

10

4997236

THRUST WASHER,51mm ID x 70mm OD x 1.6mm Thk

2шт.

11

4991658

THRUST WASHER,25mm ID x 54.5mm OD x 1.5mm Thk

2шт.

12

11075476

SNAP RING,M110, Int

1шт.

13

24903470

BEARING ASSY,70mm ID x 110mm OD x 25mm W

2шт.

14

5110423

RING NUT

1шт.

15

5135019

SHIM,98.8mm ID x 109.8mm OD x 1mm Thk

1шт.

15

5135020

SHIM,98.8mm ID x 109.8mm OD x 1.1mm Thk

1шт.

15

5135021

SHIM,98.8mm ID x 109.8mm OD x 1.2mm Thk

1шт.

15

5135022

SHIM,98.8mm ID x 109.8mm OD x 1.3mm Thk

1шт.

15

5135023

SHIM,98.8mm ID x 109.8mm OD x 1.4mm Thk

1шт.

15

5135024

SHIM,98.8mm ID x 109.8mm OD x 1.5mm Thk

1шт.

15

5135025

SHIM,98.8mm ID x 109.8mm OD x 1.6mm Thk

1шт.

15

5135026

SHIM,98.8mm ID x 109.8mm OD x 1.7mm Thk

1шт.

15

5135027

SHIM,98.8mm ID x 109.8mm OD x 1.8mm Thk

1шт.

15

5135028

SHIM,98.8mm ID x 110mm OD x 1.9mm Thk

1шт.

15

5135029

SHIM,2mm Thk

1шт.
