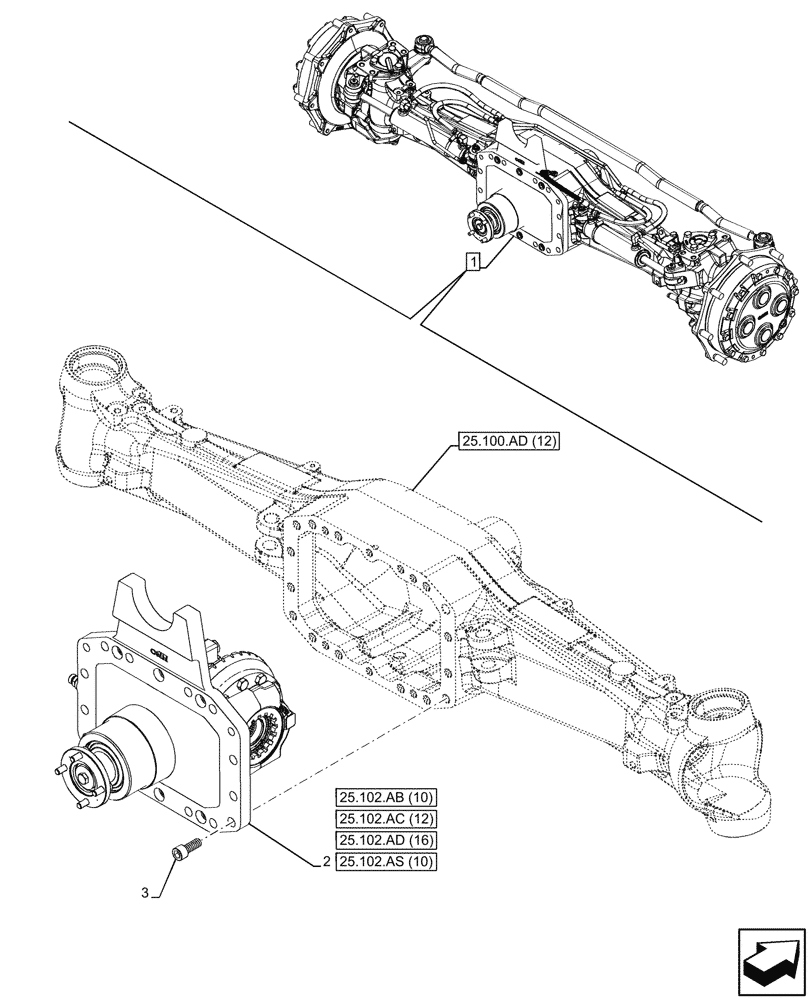

Запчасти Case IH PUMA 240 CVT (25.102.AD[15]) - VAR - 758048 - SUSPENDED FRONT AXLE, DIFFERENTIAL (25) - FRONT AXLE SYSTEM
![Схема запчастей Case IH PUMA 240 CVT - (25.102.AD[15]) - VAR - 758048 - SUSPENDED FRONT AXLE, DIFFERENTIAL (25) - FRONT AXLE SYSTEM](https://partsell.ru/storage/images/caseih/5518548.png)
1
3
25.102.as (10)
2
25.102.ac (12)
25.102.ad (16)
25.102.ab (10)
25.100.ad (12)
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
84381280
LIVE FRONT AXLE
ASSY, 4WD Suspended, Incl 2, 3
1шт.
See Axle Components also in Figure 25.100.AD (12), 25.108.AA (11), 25.108.AB (08), 25.108.AG (21), 25.108.AG (22), 41.106.AG (12), 41.216.AN (13), 41.216.AV (19), 55.047.AA (12)
1шт.
2
84371356
DIFFERENTIAL
ASSY
1шт.
3
14313734
HEX SOC SCREW,M16 x 1.5 x 40mm, Cl 10.9
6шт.
Выбрано товаров: 4
