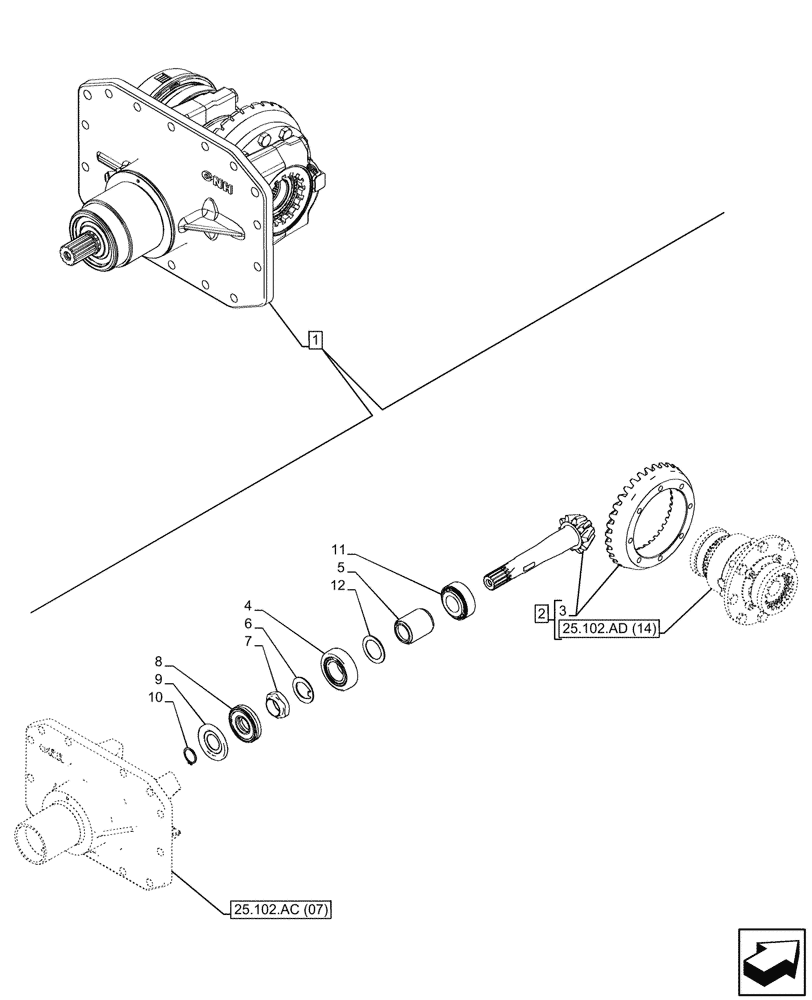

Запчасти Case IH PUMA 240 CVT (25.102.AB[09]) - VAR - 391157 - 4WD FRONT AXLE, DIFFERENTIAL, BEVEL PINION (25) - FRONT AXLE SYSTEM

1

84371444

ASSY, Incl 2 - 12

1шт.

See Differential Components also in Figure 25.102.AC (11), 25.102.AD (14), 25.102.AS (09)

1шт.

2

84371431

DIFFERENTIAL ASSY

ASSY, Incl 3

1шт.

See Differential Casing Components also in Figure 25.102.AD (14)

1шт.

3

84365311

BEVEL GEAR

1шт.

4

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

1шт.

5

87382586

SPACER,41.7mm ID x 52mm OD x 54mm L

1шт.

6

84345881

SPECIAL WASHER

1шт.

7

84289762

NUT,M40,1.5mm Pitch

1шт.

8

87349657

SEAL,37mm ID x 85mm OD x 15.5mm Thk

1шт.

9

87546420

SEAL,37mm ID x 87mm OD x 1mm Thk

1шт.

10

5109282

CIRCLIP,M35, Ext x 2.50 Thk

1шт.

11

84368730

ROLLER BEARING,45mm ID x 100mm OD x 38.25mm W

1шт.

12

5169287

SHIM,41.7mm ID x 48mm OD x 2.2mm Thk

1шт.

12

5169288

SHIM,41.7mm ID x 48mm OD x 2.25mm Thk

1шт.

12

5169289

SHIM,41.7mm ID x 48mm OD x 2.3mm Thk

1шт.

12

5169290

SHIM,41.7mm ID x 48mm OD x 2.35mm Thk

1шт.

12

5169291

SHIM,41.7mm ID x 48mm OD x 2.4mm Thk

1шт.

12

5169292

SHIM,41.7mm ID x 48mm OD x 2.45mm Thk

1шт.

12

5169293

SHIM,41.7mm ID x 48mm OD x 2.5mm Thk

1шт.

12

5169294

SHIM,41.7mm ID x 48mm OD x 2.55mm Thk

1шт.

12

5169295

SHIM,41.7mm ID x 48mm OD x 2.6mm Thk

1шт.

12

5169296

SHIM,41.7mm ID x 48mm OD x 2.65mm Thk

1шт.

12

5169297

SHIM,41.7mm ID x 48mm OD x 2.7mm Thk

1шт.

12

5169298

SHIM,41.7mm ID x 48mm OD x 2.75mm Thk

1шт.

12

5169299

SHIM,41.7mm ID x 48mm OD x 2.8mm Thk

1шт.

12

5169300

SHIM,41.7mm ID x 48mm OD x 2.85mm Thk

1шт.

12

5169301

SHIM,41.7mm ID x 48mm OD x 2.9mm Thk

1шт.

12

5169302

SHIM,41.7mm ID x 48mm OD x 2.95mm Thk

1шт.

12

5169303

SHIM,41.7mm ID x 48mm OD x 3mm Thk

1шт.

12

5169304

SHIM,41.7mm ID x 48mm OD x 3.05mm Thk

1шт.

12

5169305

SHIM,41.7mm ID x 48mm OD x 3.1mm Thk

1шт.

12

5169306

SHIM,41.7mm ID x 48mm OD x 3.15mm Thk

1шт.

12

5169307

SHIM,41.7mm ID x 48mm OD x 3.2mm Thk

1шт.

12

5169308

SHIM,41.7mm ID x 48mm OD x 3.25mm Thk

1шт.

12

5169309

SHIM,41.7mm ID x 48mm OD x 3.3mm Thk

1шт.

12

5169310

SHIM,41.7mm ID x 48mm OD x 3.35mm Thk

1шт.

12

5169311

SHIM,41.70mm ID x 48.00mm OD x 3.40mm T

1шт.

12

5169312

SHIM,41.7mm ID x 48mm OD x 3.45mm Thk

1шт.
