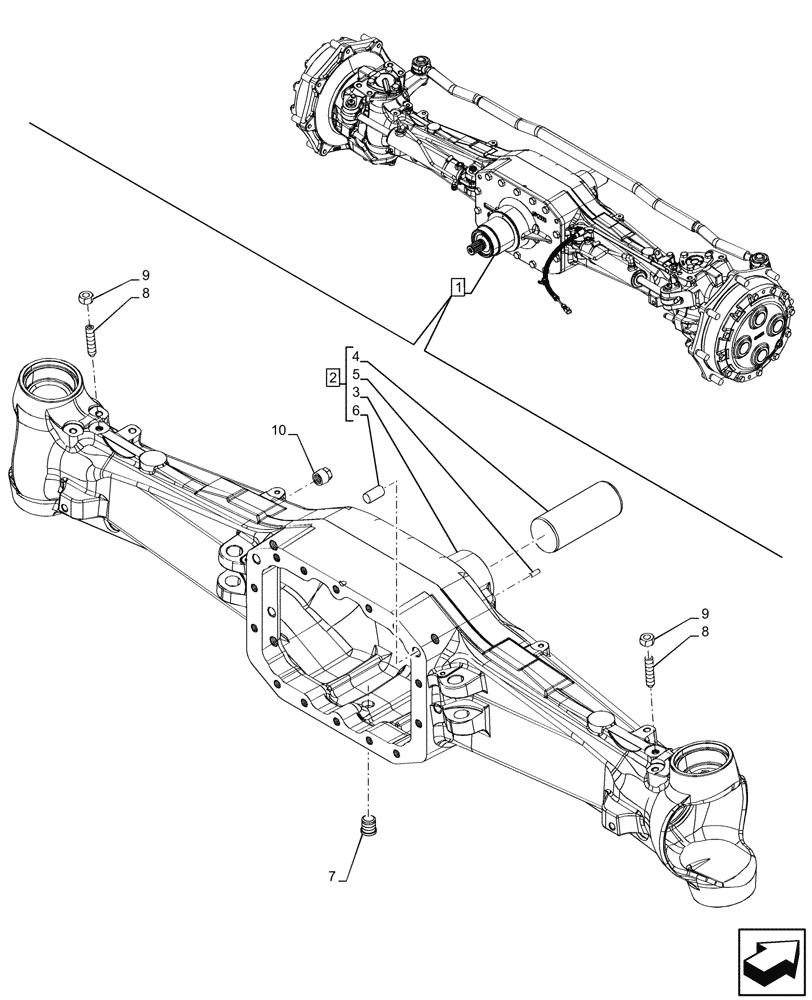

Запчасти Case IH PUMA 240 CVT (25.100.AD[11]) - VAR - 391157 - 4WD FRONT AXLE, HOUSING (25) - FRONT AXLE SYSTEM

1

84381257

LIVE FRONT AXLE

ASSY, 4WD Standard, Incl 2 - 10

1шт.

See Axle Components also in Figure 25.102.AD (13), 25.108.AA (10), 25.108.AB (07), 25.108.AG (19), 25.108.AG (20), 41.106.AG (11), 41.216.AN (12), 41.216.AV (18), 55.047.AA (11)

1шт.

2

87633145

AXLE HOUSING

ASSY, Incl 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Incl in 2

1шт.

4

5140170

PIN

1шт.

5

4966244

PIN,5mm OD x 15mm L

1шт.

6

5174376

DOWEL,M16 x 30

2шт.

7

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

8

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.

9

16101511

NUT,M12 x 1.25, Cl 8

2шт.

10

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.
