Запчасти Case IH PUMA 220 CVT (50.200.CA) - VAR - 391177, 391299, 391357, 758131, 758133, 758265, 758666, 758667, 758668, 758669, 759264, 759265, 759266 - AIR CONDITIONER, EVAPORATOR (50) - CAB CLIMATE CONTROL

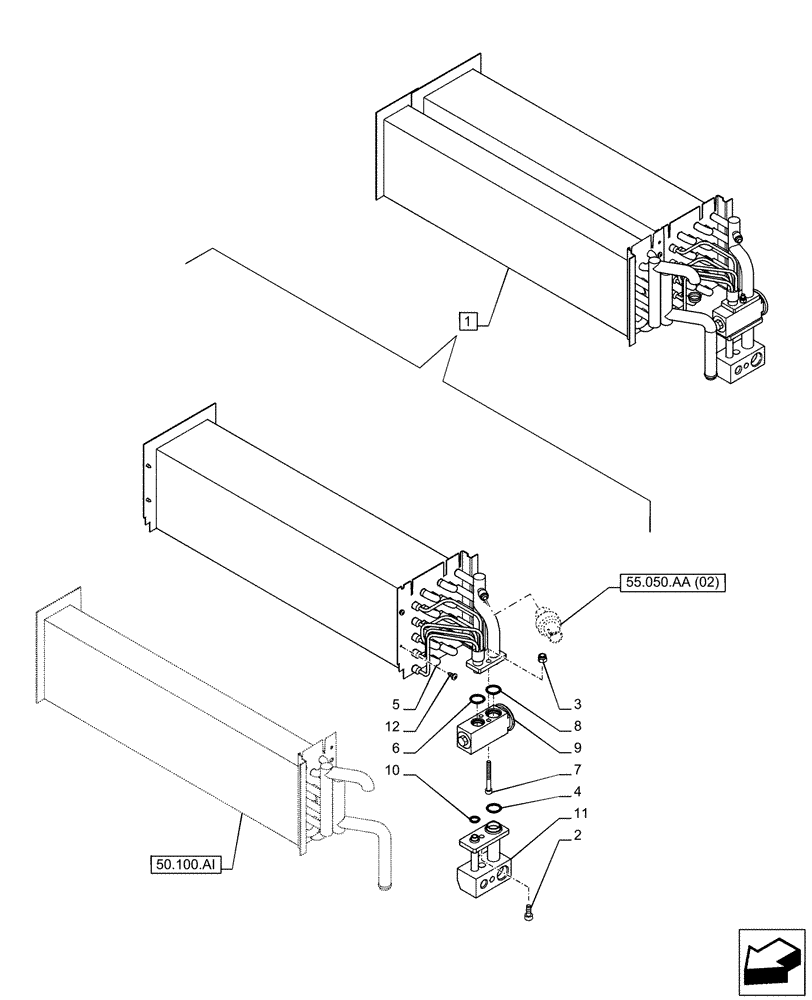

Схема запчастей Case IH PUMA 220 CVT - (50.200.CA) - VAR - 391177, 391299, 391357, 758131, 758133, 758265, 758666, 758667, 758668, 758669, 759264, 759265, 759266 - AIR CONDITIONER, EVAPORATOR (50) - CAB CLIMATE CONTROL
50.100.ai
9
12
3
6
1
4
5
7
10
2
11
8
55.050.aa (02)

Артикул

Название

Примечание

Количество

1

82037665

AIR CONDITIONER

ASSY, Incl 2 - 12

1шт.

See also Air Conditioner Assy Components in Figure 50.100.AI, 55.050.AA (02)

1шт.

Part is Included in Air Conditioner Assy 47490413, 84233168

1шт.

2

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.

3

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

4

82000789

O-RING,1.85mm Thk x 17.6mm ID

1шт.

5

82033008

EVAPORATOR

Core

1шт.

6

82000792

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

7

14358921

HEX SOC SCREW,M5 x 50mm, Cl 8.8

2шт.

8

82000791

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

9

82023542

VALVE, THERMAL EXPAN

1шт.

10

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

11

82027885

PIPE

1шт.

12

15902601

SCREW,Pozidriv Pan Hd, 9.50mm L

4шт.

Выбрано товаров: 14
