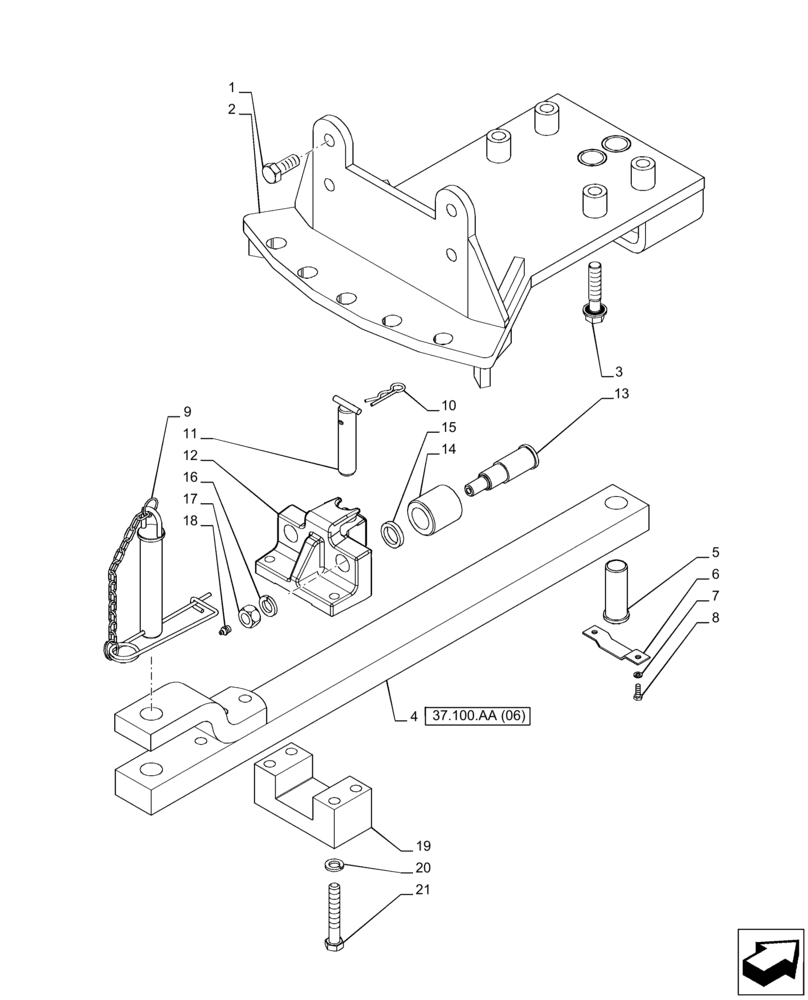

Запчасти Case IH PUMA 220 CVT (37.100.AA[05]) - VAR - 758102 - DRAWBAR (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84197136

HITCH BRACKET

1шт.

2

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

4шт.

3

82001975

BOLT,Flng, M18 x 1.5 x 80mm, Cl 12.9

4шт.

4

82027758

DRAWBAR

1шт.

5

82014774

TOWBAR PIN,32mm OD x 93.5mm L

1шт.

6

82021060

PLATE

1шт.

7

80682

LOCK WASHER,1/4"

2шт.

8

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

9

87579063

HITCH PIN,32mm OD x 182mm L

1шт.

10

82026318

COTTER PIN,1/8 x 2 5/16

1шт.

11

82029383

PIN,26mm OD x 115.5mm L

1шт.

12

84126360

SUPPORT

1шт.

13

83954368

BOLT,28.05mm OD x 126.64mm L

2шт.

14

83954370

ROLLER,56.9mm OD x 60.2mm L

2шт.

15

83954373

WASHER,1.11" ID x 1.57" OD x 0.28" Thk

2шт.

16

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

17

80001689

NUT

2шт.

18

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

19

82035866

PLATE

1шт.

20

10572174

LOCK WASHER,Helical Spring, 16.20mm ID x 27.40mm OD x 3.50mm, C72, DAC

4шт.

21

16218574

BOLT,Hex, M16 x 1.5 x 100mm, Cl 12.9

4шт.
