Запчасти Case IH PUMA 220 CVT (31.104.AR[02]) - VAR - 391145, 758028, 758030, 758031, 758032 - PTO, CONTROL VALVE, COMPONENTS (31) - IMPLEMENT POWER TAKE OFF

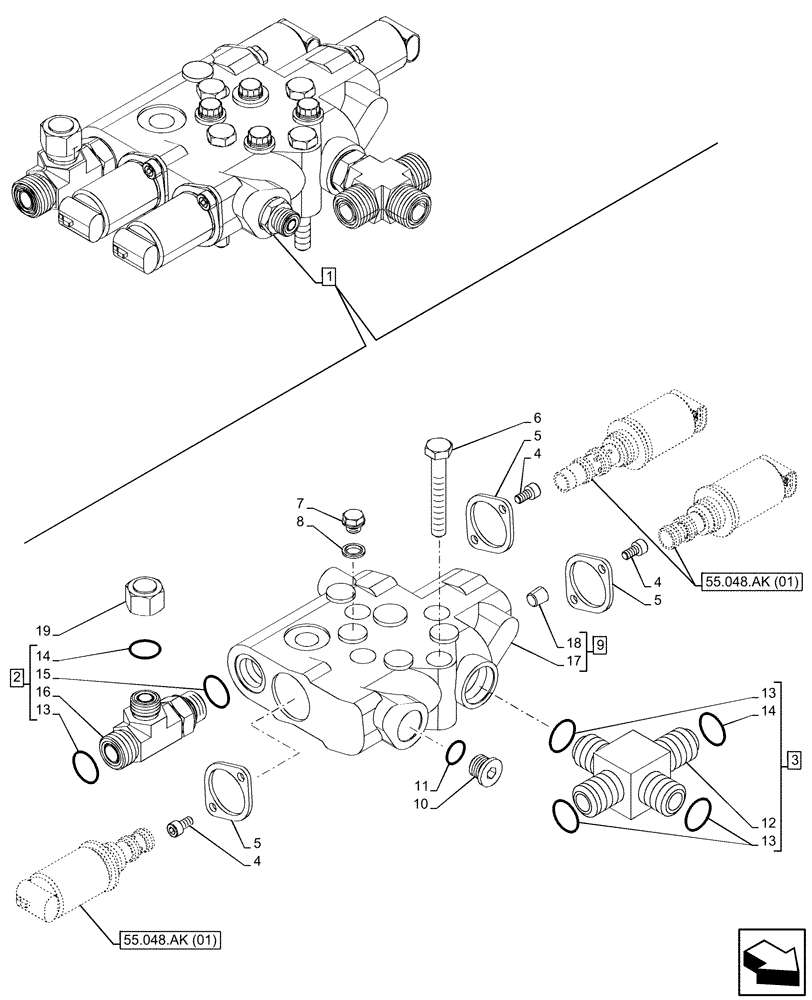

Схема запчастей Case IH PUMA 220 CVT - (31.104.AR[02]) - VAR - 391145, 758028, 758030, 758031, 758032 - PTO, CONTROL VALVE, COMPONENTS (31) - IMPLEMENT POWER TAKE OFF
55.048.ak (01)
8
7
1
14
14
12
17
13
6
15
13
13
3
5
4
10
5
9
4
18
2
4
5
16
11
19
55.048.ak (01)

Артикул

Название

Примечание

Количество

1

87525222

DISTRIBUTOR

ASSY, Incl 2 - 19

1шт.

See also Figure 55.048.AK (01)

1шт.

2

47136372

HYD CONNECTOR,M22 x 1.5 x 88.5mm L

ASSY, Incl 13 (Qty 1), 14 (Qty 1), 15, 16

1шт.

3

5187063

HYD CONNECTOR

ASSY, Incl 12, 13 (Qty 3), 14 (Qty 1)

1шт.

4

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

8шт.

5

5194826

BRACKET

4шт.

6

15888821

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

4шт.

7

87535222

PLUG,Hex, M10 x 1 x 13mm

4шт.

8

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

4шт.

9

87523105

VALVE BODY

ASSY, Incl 17, 18

1шт.

10

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

11

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

13

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

14

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

15

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

17

NSS

NOT SOLD SEPARAT

Body, Incl in 9

1шт.

18

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

6шт.

19

47123020

PLUG,Hex

1шт.

Выбрано товаров: 20
