Запчасти Case IH PUMA 220 CVT (27.100.AI[01]) - VAR - 337426, 337427, 337428, 337429, 337430, 337431, 337432, 337433, 391137, 391138, 758017, 758018, 758019, 758020, 758021, 758022, 759052, 759053 - REAR AXLE, HOUSING, BREATHER (27) - REAR AXLE SYSTEM

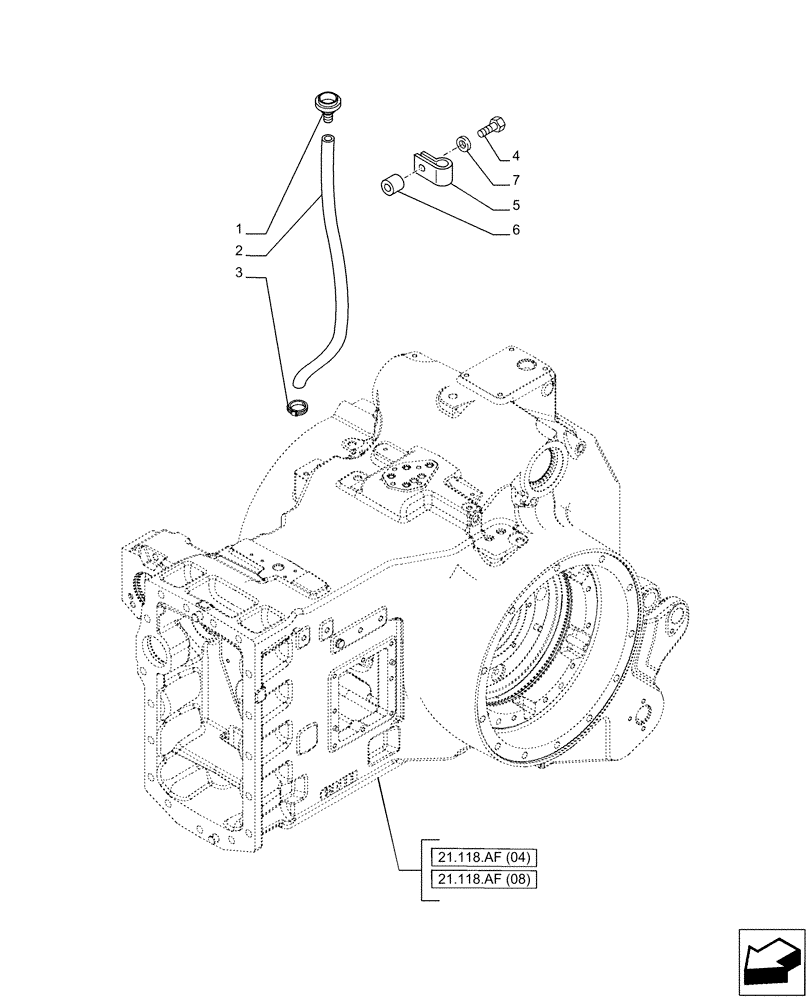

Схема запчастей Case IH PUMA 220 CVT - (27.100.AI[01]) - VAR - 337426, 337427, 337428, 337429, 337430, 337431, 337432, 337433, 391137, 391138, 758017, 758018, 758019, 758020, 758021, 758022, 759052, 759053 - REAR AXLE, HOUSING, BREATHER (27) - REAR AXLE S
21.118.af (04)
5
4
3
6
1
7
2
21.118.af (08)

Артикул

Название

Примечание

Количество

1

83925022

BREATHER,.375-18 NPT

1шт.

2

84145586

HOSE ASSY.,15.90 mm ID x 500.00 mm

1шт.

3

82039341

CLAMP,12mm - 22mm

1шт.

4

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

5

87302117

CLAMP,18.5mm ID, 9mm Bolt Hole, P Type

1шт.

6

13611211

SPACER,8.5mm ID x 15mm OD x 23mm L

1шт.

7

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

1шт.

Выбрано товаров: 7
