(25.122.AD[03]) - VAR - 337416, 758048, 758049 - SUSPENDED FRONT AXLE, CYLINDER, LINE

Запчасти Case IH PUMA 220 CVT (25.122.AD[03]) - VAR - 337416, 758048, 758049 - SUSPENDED FRONT AXLE, CYLINDER, LINE (25) - FRONT AXLE SYSTEM

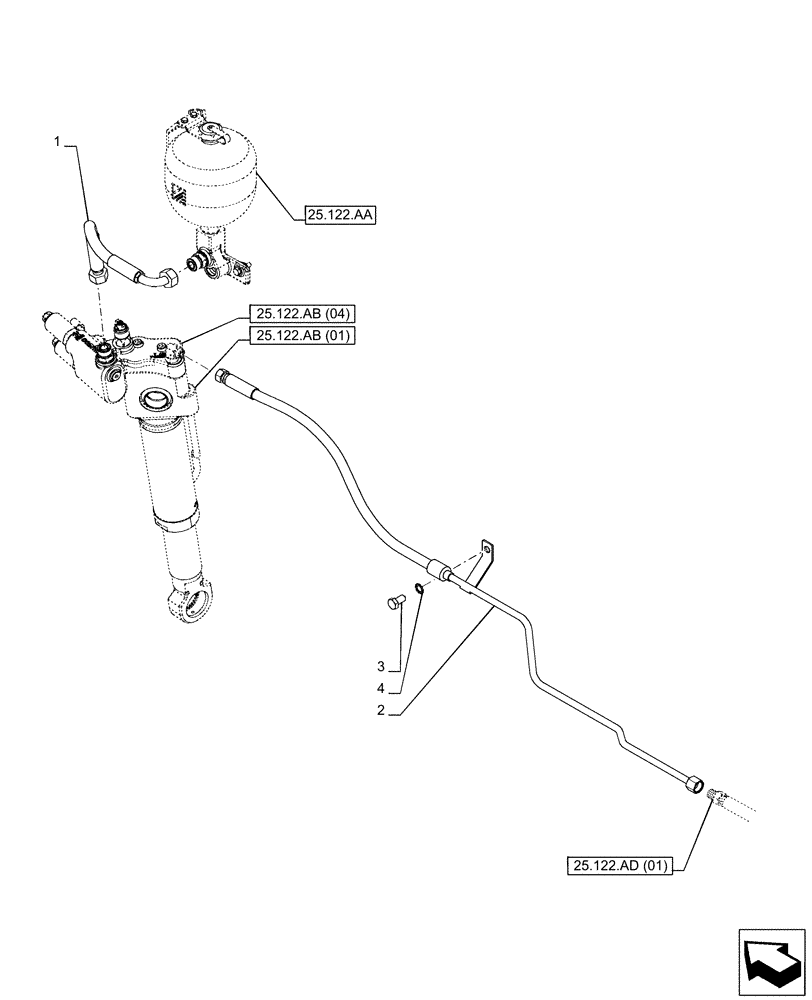

Схема запчастей Case IH PUMA 220 CVT - (25.122.AD[03]) - VAR - 337416, 758048, 758049 - SUSPENDED FRONT AXLE, CYLINDER, LINE (25) - FRONT AXLE SYSTEM
25.122.ad (01)
1
4
3
2
25.122.aa
25.122.ab (01)
25.122.ab (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87545810

HOSE

Accumulator

1шт.

2

47467270

PIPE

Cylinder

1шт.

3

11112221

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

1шт.

4

10615879

LOCK WASHER,Serr, M12

1шт.

Выбрано товаров: 4
