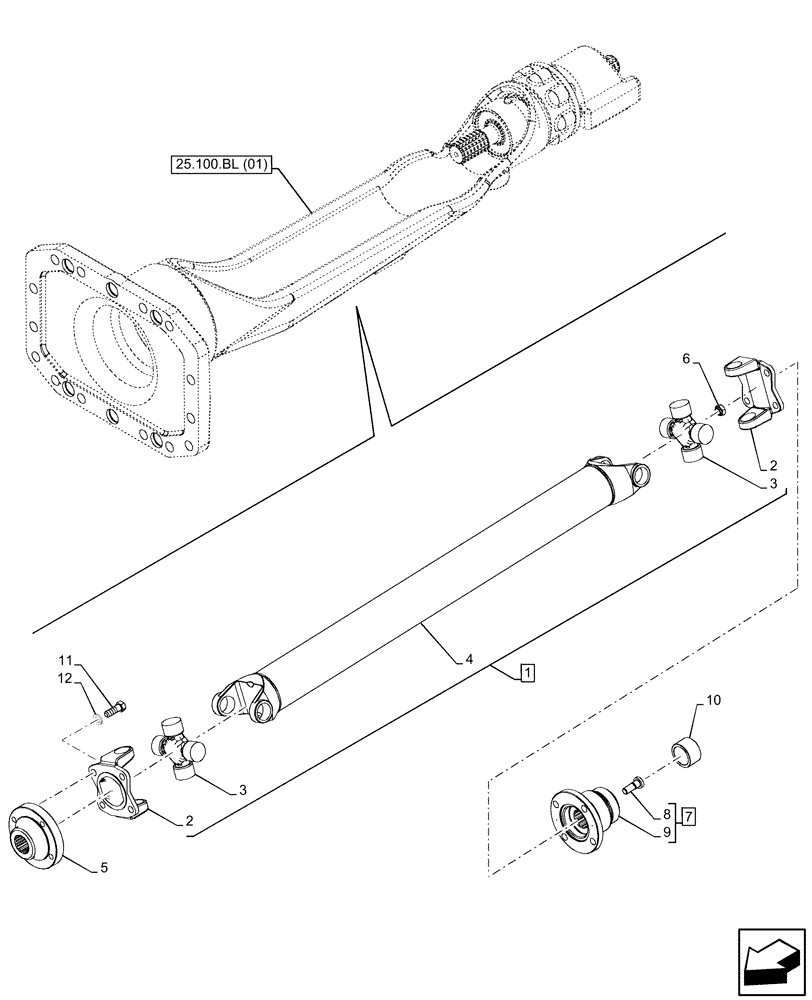

Запчасти Case IH PUMA 220 CVT (23.314.AH[03]) - VAR - 391157 - 4WD FRONT AXLE, DRIVE SHAFT (23) - FOUR WHEEL DRIVE SYSTEM

1

84486155

DRIVE SHAFT

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Flange Yoke, Incl in 1

2шт.

3

84512471

SERVICE KIT,Drive Shaft

1шт.

4

NSS

NOT SOLD SEPARAT

Yoke Plug, Incl in 1

1шт.

5

87309421

FLANGE

1шт.

6

82936516

LOCK NUT,7/16"-20

4шт.

7

47135489

SPLINED COUPLING

ASSY, Incl 7, 8

1шт.

8

87550808

PIN,12.5mm OD x 37mm L

4шт.

9

NSS

NOT SOLD SEPARAT

Flange, Incl in 7

1шт.

10

47135379

SPACER,34.6mm ID x 45mm OD x 26mm L

1шт.

11

87601117

BOLT,Hex, 7/16" - 20 x 1-1/4"

4шт.

12

83935787

LOCK WASHER,7/16"

4шт.
