Запчасти Case IH PUMA 220 CVT (23.314.AH[01]) - VAR - 337426, 337429, 337430, 337432, 391137, 391138, 758017, 758018, 758019, 758020, 758021, 758022, 759052, 759053 - 4WD FRONT AXLE, DRIVE SHAFT (23) - FOUR WHEEL DRIVE SYSTEM

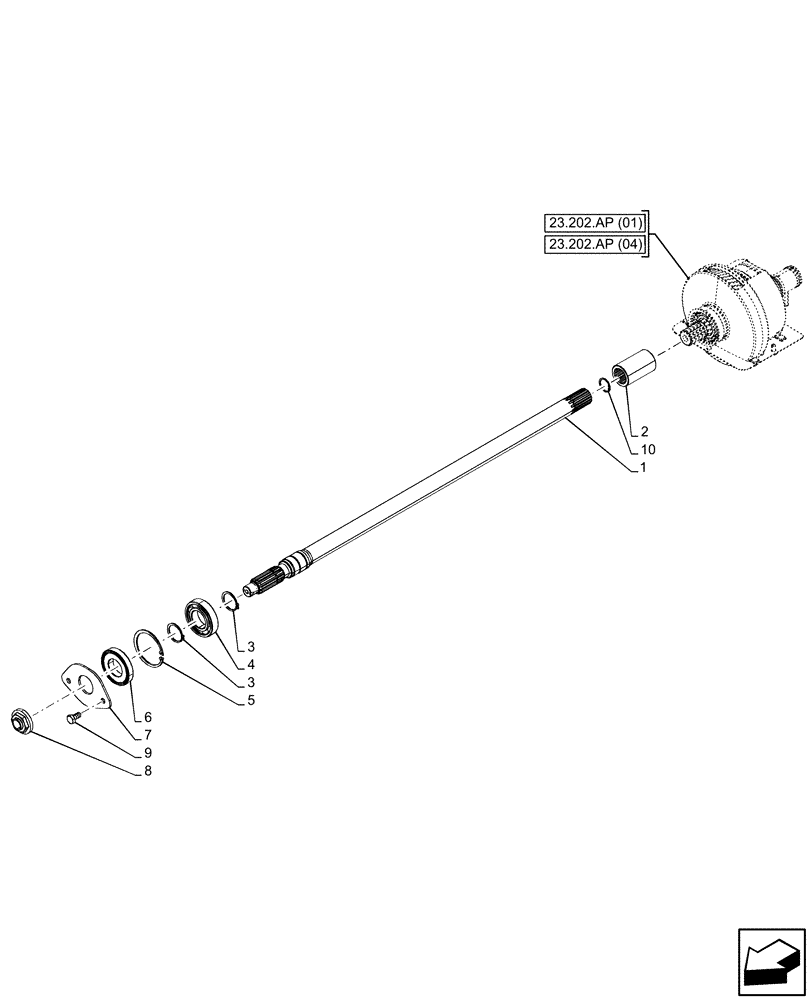

![Схема запчастей Case IH PUMA 220 CVT - (23.314.AH[01]) - VAR - 337426, 337429, 337430, 337432, 391137, 391138, 758017, 758018, 758019, 758020, 758021, 758022, 759052, 759053 - 4WD FRONT AXLE, DRIVE SHAFT (23) - FOUR WHEEL DRIVE SYSTEM](https://partsell.ru/storage/images/caseih/5364165.png)
23.202.ap (01)
5
10
8
9
2
3
3
6
4
1
7
23.202.ap (04)
1
87599004
DRIVE SHAFT
981mm
1шт.
2
5172239
SPLINED COUPLING,12T
1шт.
3
11068876
SNAP RING,M40, Ext
2шт.
4
20915780
BALL BEARING,40mm ID x 80mm OD x 18mm W
1шт.
5
11061976
SNAP RING,M80, Int
1шт.
6
47134818
SEAL,40mm ID x 80mm OD x 15mm Thk
40 x 80 x 14/15mm
1шт.
7
47135527
FLANGE
1шт.
8
5111953
NUT,M24 x 1.5
M24 x 20mm
1шт.
9
15970624
BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd
2шт.
10
11058876
SNAP RING,M30, Int
1шт.
