(21.109.AD[03]) - VAR - 337427, 337433, 391138, 758022, 758870, 759053 - TRANSMISSION, OIL COOLER LINE

Запчасти Case IH PUMA 220 CVT (21.109.AD[03]) - VAR - 337427, 337433, 391138, 758022, 758870, 759053 - TRANSMISSION, OIL COOLER LINE (21) - TRANSMISSION

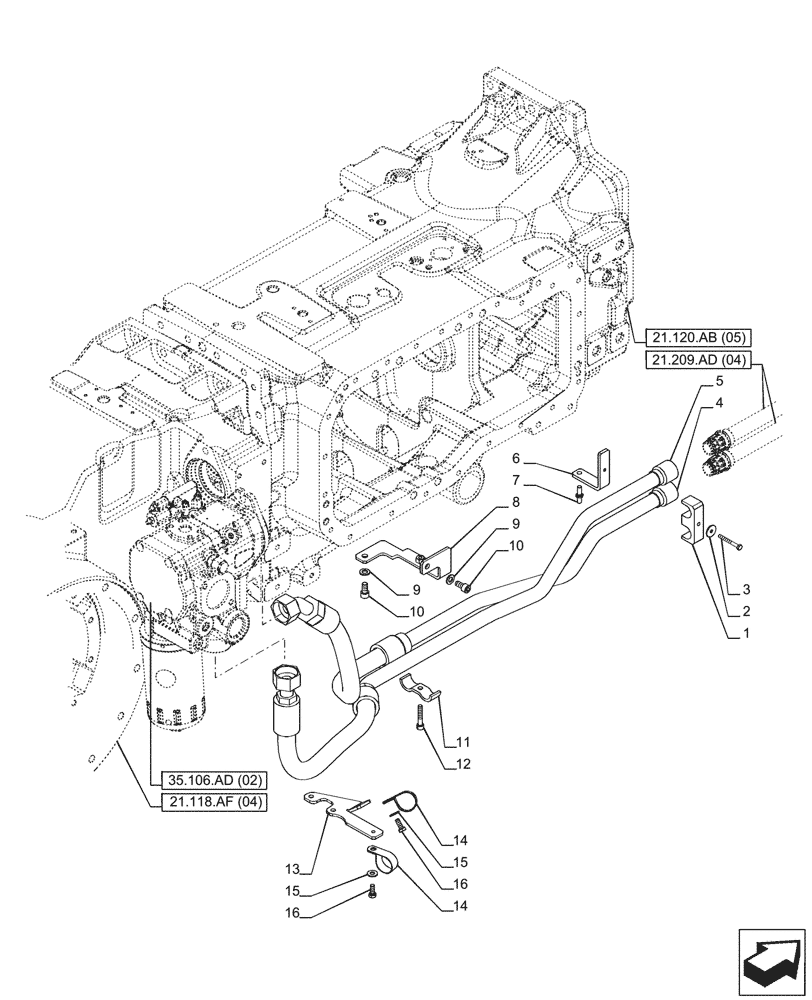

Схема запчастей Case IH PUMA 220 CVT - (21.109.AD[03]) - VAR - 337427, 337433, 391138, 758022, 758870, 759053 - TRANSMISSION, OIL COOLER LINE (21) - TRANSMISSION
21.118.af (04)
21.209.ad (04)
16
10
10
15
14
15
6
5
4
11
14
8
9
3
13
1
2
12
7
16
9
35.106.ad (02)
21.120.ab (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87608298

CLAMP BRACKET

1шт.

2

12640624

WASHER,6.15mm ID x 25mm OD x 2mm Thk

6.15 x 25 x 2mm

1шт.

3

15213024

SCREW,Hex, M6 x 55mm, Cl 8.8

1шт.

4

84473840

HYD TUBE

Oil Cooler Supply

1шт.

5

84496253

HOSE

Oil Cooler Return

1шт.

6

87608297

BRACKET

1шт.

7

87316808

STUD,M8 x 1.25mm

M8 x 1.25mm

2шт.

8

84473823

BRACKET

1шт.

9

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

10

14307324

HEX SOC SCREW,M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

11

84238526

CLAMP BRACKET

1шт.

12

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

1шт.

13

84319208

BRACKET

1шт.

14

87648719

CLAMP,36.5mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

15

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

16

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.
