PUMA CVT TIER 4B
/
(PUMA 220 CVT) - TRACTOR - TIER 4B (4/14-12/15)
/
(05) - SERVICE & MAINTENANCE
/

(05.100.04[05]) - MAINTENANCE PARTS - PUMPS

Запчасти Case IH PUMA 220 CVT (05.100.04[05]) - MAINTENANCE PARTS - PUMPS (05) - SERVICE & MAINTENANCE

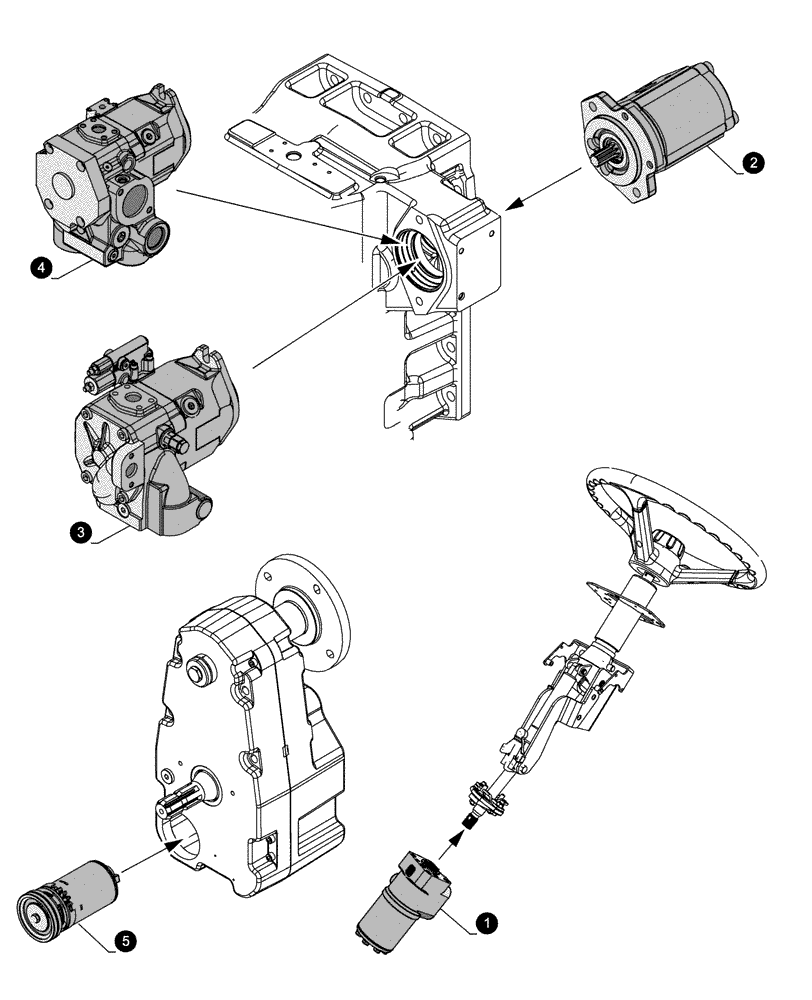

Схема запчастей Case IH PUMA 220 CVT - (05.100.04[05]) - MAINTENANCE PARTS - PUMPS (05) - SERVICE & MAINTENANCE
2
5
4
3
1

№

Артикул

Название

Примечание

Количество

1

47403444

STEERING VALVE

Steering Column

1шт.

Valid with Var. 391231, 758270

1шт.

1

47395762

STEERING VALVE

Fast Steering

1шт.

Valid with Var. 758267, 758271, 758275, 758278

1шт.

1

47403442

STEERING VALVE

Steering Column

1шт.

Valid with Var. 758268, 758269, 758272, 758273, 758276, 758277

1шт.

2

84355757

HYDRAULIC PUMP,21.95 CC

On Axle Housing

1шт.

Valid with T7.230-TRACTOR - TIER 4B, T7.245-TRACTOR - TIER 4B, T7.260-TRACTOR - TIER 4B, PUMA 185-TRACTOR - TIER 4B, PUMA 200-TRACTOR - TIER 4B, PUMA 220-TRACTOR - TIER 4B Models

1шт.

Valid with Var. 391161, 758056

1шт.

3

84471388

HYDRAULIC PUMP,45 CC

On Axle Housing

1шт.

Valid with T7.230-TRACTOR - TIER 4B, T7.245-TRACTOR - TIER 4B, T7.260-TRACTOR - TIER 4B, PUMA 185-TRACTOR - TIER 4B, PUMA 200-TRACTOR - TIER 4B, PUMA 220-TRACTOR - TIER 4B Models

1шт.

Valid with Var. 391161

1шт.

3

84471388R

REMAN-HYD PUMP

On Axle Housing

1шт.

Valid with T7.230-TRACTOR - TIER 4B, T7.245-TRACTOR - TIER 4B, T7.260-TRACTOR - TIER 4B, PUMA 185-TRACTOR - TIER 4B, PUMA 200-TRACTOR - TIER 4B, PUMA 220-TRACTOR - TIER 4B Models

1шт.

Valid with Var. 391161

1шт.

3

84471388C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

84471390

HYDRAULIC PUMP,56 CC

On Axle Housing

1шт.

Valid with T7.230-TRACTOR - TIER 4B, T7.245-TRACTOR - TIER 4B, T7.260-TRACTOR - TIER 4B, PUMA 185-TRACTOR - TIER 4B, PUMA 200-TRACTOR - TIER 4B, PUMA 220-TRACTOR - TIER 4B Models

1шт.

Valid with Var. 758056

1шт.

4

84353098

HYDRAULIC PUMP,56 CC

On Axle Housing

1шт.

Valid with T7.230-AUTOCOMMAND TRACTOR - TIER 4B, T7.245-AUTOCOMMAND TRACTOR - TIER 4B, T7.260-AUTOCOMMAND TRACTOR - TIER 4B ,T7.270-AUTOCOMMAND TRACTOR - TIER 4B, PUMA 185 CVT-TRACTOR - TIER 4B, PUMA 185 CVX-TRACTOR - TIER 4B, PUMA 200 CVT-TRACTOR - TIER 4B, PUMA 200 CVX-TRACTOR - TIER 4B, PUMA 220 CVT-TRACTOR - TIER 4B, PUMA 220 CVX-TRACTOR - TIER 4B, PUMA 240 CVT-TRACTOR - TIER 4B, PUMA 240 CVX-TRACTOR - TIER 4B, 6185 CVT-TRACTOR - TIER 4B, 6200 CVT-TRACTOR - TIER 4B, 6220 CVT-TRACTOR - TIER 4B, 6240 CVT-

1шт.

Valid with Var. 391161

1шт.

4

84353098R

REMAN-HYD PUMP

On Axle Housing

1шт.

Valid with T7.230-AUTOCOMMAND TRACTOR - TIER 4B, T7.245-AUTOCOMMAND TRACTOR - TIER 4B, T7.260-AUTOCOMMAND TRACTOR - TIER 4B ,T7.270-AUTOCOMMAND TRACTOR - TIER 4B, PUMA 185 CVT-TRACTOR - TIER 4B, PUMA 185 CVX-TRACTOR - TIER 4B, PUMA 200 CVT-TRACTOR - TIER 4B, PUMA 200 CVX-TRACTOR - TIER 4B, PUMA 220 CVT-TRACTOR - TIER 4B, PUMA 220 CVX-TRACTOR - TIER 4B, PUMA 240 CVT-TRACTOR - TIER 4B, PUMA 240 CVX-TRACTOR - TIER 4B, 6185 CVT-TRACTOR - TIER 4B, 6200 CVT-TRACTOR - TIER 4B, 6220 CVT-TRACTOR - TIER 4B, 6240 CVT-

1шт.

Valid with Var. 391161

1шт.

4

84353098C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

84353100

HYDRAULIC PUMP,63 CC

On Axle Housing

1шт.

Valid with T7.230-AUTOCOMMAND TRACTOR - TIER 4B, T7.245-AUTOCOMMAND TRACTOR - TIER 4B, T7.260-AUTOCOMMAND TRACTOR - TIER 4B ,T7.270-AUTOCOMMAND TRACTOR - TIER 4B, PUMA 185 CVT-TRACTOR - TIER 4B, PUMA 185 CVX-TRACTOR - TIER 4B, PUMA 200 CVT-TRACTOR - TIER 4B, PUMA 200 CVX-TRACTOR - TIER 4B, PUMA 220 CVT-TRACTOR - TIER 4B, PUMA 220 CVX-TRACTOR - TIER 4B, PUMA 240 CVT-TRACTOR - TIER 4B, PUMA 240 CVX-TRACTOR - TIER 4B, 6185 CVT-TRACTOR - TIER 4B, 6200 CVT-TRACTOR - TIER 4B, 6220 CVT-TRACTOR - TIER 4B, 6240 CVT-

1шт.

Valid with Var. 758056

1шт.

4

84353100R

REMAN-HYD PUMP

On Axle Housing

1шт.

Valid with T7.230-AUTOCOMMAND TRACTOR - TIER 4B, T7.245-AUTOCOMMAND TRACTOR - TIER 4B, T7.260-AUTOCOMMAND TRACTOR - TIER 4B ,T7.270-AUTOCOMMAND TRACTOR - TIER 4B, PUMA 185 CVT-TRACTOR - TIER 4B, PUMA 185 CVX-TRACTOR - TIER 4B, PUMA 200 CVT-TRACTOR - TIER 4B, PUMA 200 CVX-TRACTOR - TIER 4B, PUMA 220 CVT-TRACTOR - TIER 4B, PUMA 220 CVX-TRACTOR - TIER 4B, PUMA 240 CVT-TRACTOR - TIER 4B, PUMA 240 CVX-TRACTOR - TIER 4B, 6185 CVT-TRACTOR - TIER 4B, 6200 CVT-TRACTOR - TIER 4B, 6220 CVT-TRACTOR - TIER 4B, 6240 CVT-

1шт.

Valid with Var. 758056

1шт.

4

84353100C

CORE-HYDRAULIC PUMP

Return Number

1шт.

5

87543729

HYDRAULIC PUMP

On Frontal Gearbox

1шт.

Valid with T7.230-AUTOCOMMAND TRACTOR - TIER 4B, T7.245-AUTOCOMMAND TRACTOR - TIER 4B, T7.260-AUTOCOMMAND TRACTOR - TIER 4B ,T7.270-AUTOCOMMAND TRACTOR - TIER 4B Models

1шт.

Valid with Var. 758091, 758093

1шт.

Выбрано товаров: 36
