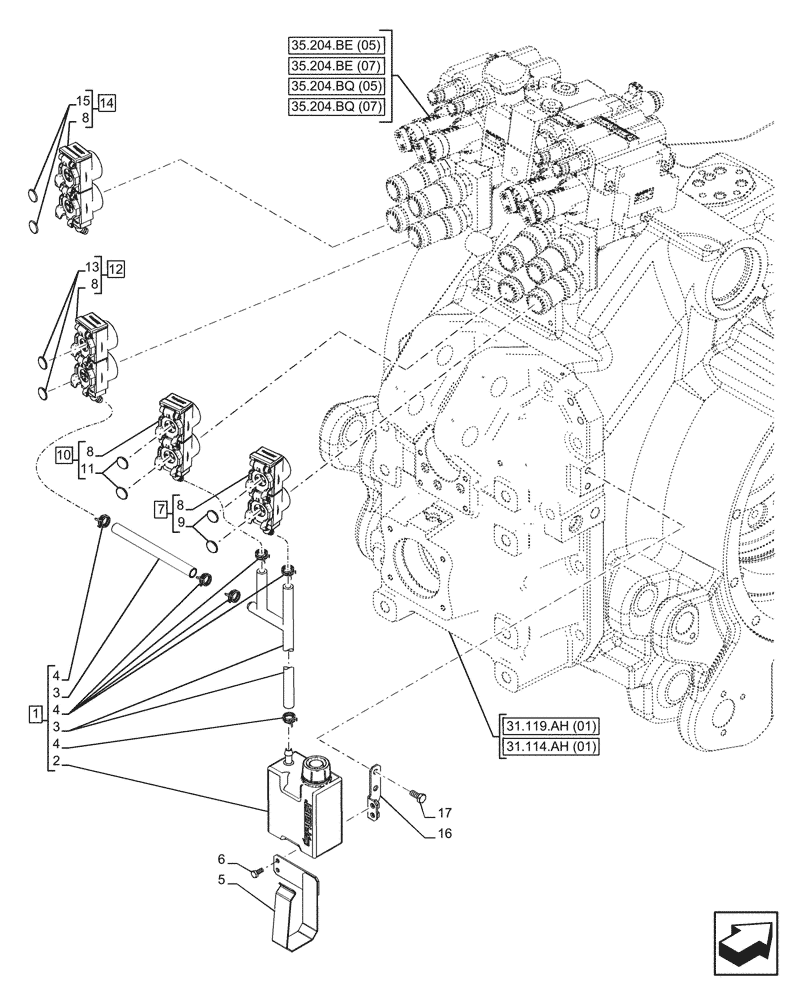

Запчасти Case IH PUMA 220 CVT (35.204.BW[02]) - VAR - 758058, 758060 - 4 REMOTE CONTROL VALVE, RESERVOIR (35) - HYDRAULIC SYSTEMS

1

84286362

BOTTLE

ASSY, Incl 2 - 4

1шт.

2

87555441

RESERVOIR, HYDRAULIC,600ml

600ml

1шт.

3

84253969

FLEXIBLE HOSE,8mm ID x 1030mm L

1шт.

4

13423370

CLAMP,13.6mm - 15.1mm

13.6 - 15.1 x 1.5

7шт.

5

84312030

SUPPORT

1шт.

6

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

7

47617741

ASSY, Double Green Clips, Incl 8 (Qty 1), 9

CAP,Double Green

1шт.

8

84253930

DUST CAP,56.5mm H x 128mm L x 39.5mm Thk

Double

4шт.

9

82029892

LENS

Green

2шт.

10

47617740

ASSY, Double Blue Clips, Incl 8 (Qty 1), 11

CAP

1шт.

11

82029893

LENS

Blue

2шт.

12

47617739

ASSY, Double Brown Clips, Incl 8 (Qty 1), 13

CAP

1шт.

13

82029894

DISC,20mm OD x 5.5mm Thk, Green, PA6+30% Glass Fiber

Brown

2шт.

14

47617738

ASSY, Double Black Clips, Incl 8 (Qty 1), 13

CAP

1шт.

15

82029895

DISC,20mm D, Black

Black

2шт.

16

84319178

BRACKET

1шт.

17

14307374

BOLT,Hex Skt, M10 x 1.25 x 20mm, Cl 12.9, Full Thd

2шт.
