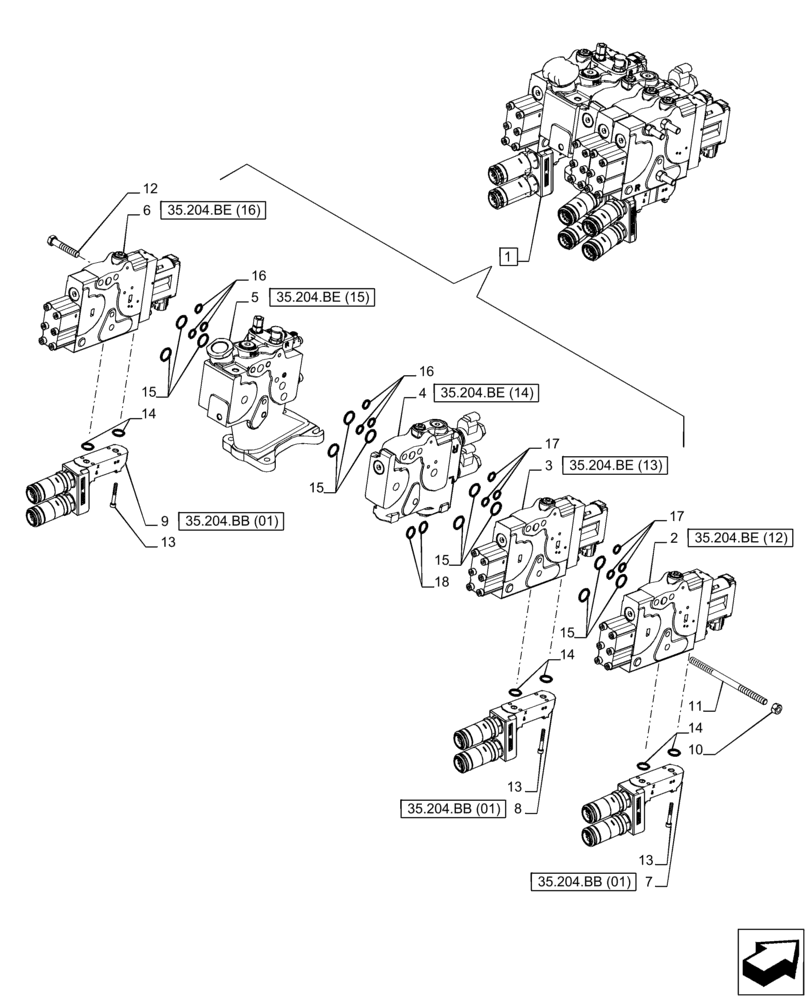

Запчасти Case IH PUMA 220 CVT (35.204.BQ[02]) - VAR - 391165, 758059 - 3 REMOTE CONTROL VALVE (EHR), COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47594440

CONTROL VALVE

ASSY, Incl 2 - 18

1шт.

2

47594401

HYDRAULIC VALVE

RH, Low

1шт.

3

47594399

HYDRAULIC VALVE

Main Low

1шт.

4

47434177

HYD VALVE SECTION

Hitch

1шт.

4

47434177R

REMAN-HYD VALVE

Reman For New P/N 47434177, Hitch

1шт.

4

47434177C

CORE-VALVE HYD

Return Part Number

1шт.

5

87555868

MANIFOLD VALVE

Inlet, Outlet

1шт.

6

47594400

HYDRAULIC VALVE

LH, Low

1шт.

7

87381981

HYDRAULIC MANIFOLD

1 EHR

1шт.

8

87381982

HYDRAULIC MANIFOLD

2 EHR

1шт.

9

87381983

HYDRAULIC MANIFOLD

3 EHR

1шт.

10

829-1312

NUT,M12 x 1.75, Cl 10

3шт.

11

84268953

STUD,M12 x 1.75 x 205mm L

3шт.

12

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

3шт.

13

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

12шт.

14

87635381

O-RING,2.62mm Thk x 15.54mm ID, -114, 80 Duro

6шт.

15

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

13шт.

16

87635380

O-RING,2.62mm Thk x 12.37mm ID, -112, 80 Duro

6шт.

17

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

6шт.

18

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

2шт.
