Запчасти Case IH PUMA 220 CVT (35.124.AE[01]) - VAR - 758072, 758077, 758082 - TOP LINK, LINE (35) - HYDRAULIC SYSTEMS

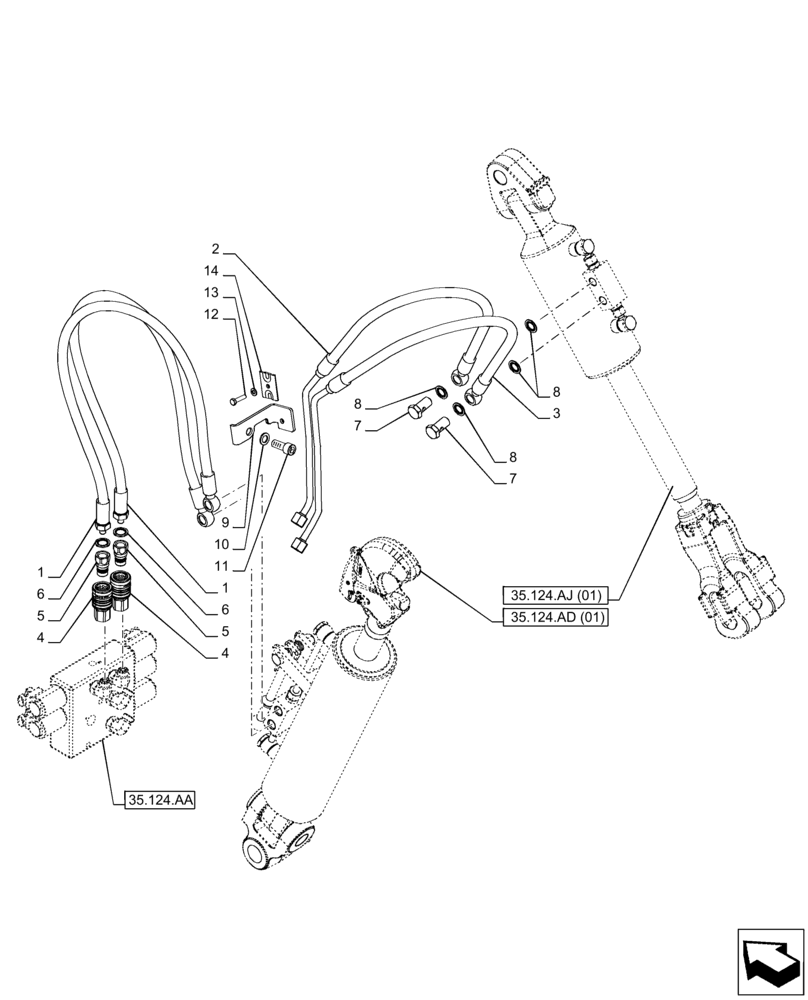

Схема запчастей Case IH PUMA 220 CVT - (35.124.AE[01]) - VAR - 758072, 758077, 758082 - TOP LINK, LINE (35) - HYDRAULIC SYSTEMS
9
12
10
8
2
6
5
4
35.124.ad (01)
6
35.124.aj (01)
5
35.124.aa
8
14
7
11
8
3
13
4
7
1
1

Артикул

Название

Примечание

Количество

1

47123016

HYDRAULIC HOSE

2шт.

2

87688259

HYD TUBE,7.9 mm ID x 10 mm OD

Extend

2шт.

3

87689079

HYD TUBE,7.9 mm ID x 10 mm OD x 900, 240.2 mm L

Retract

2шт.

4

47123022

QUICK MALE COUPLING,26mm ID x 33.2mm OD x 62.5mm L, Female

Female

2шт.

5

47123021

HALF-COUPLING

Male

2шт.

6

84185636

SEAL,14.76mm ID x 23.8mm OD x 3mm Thk

2шт.

7

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

2шт.

8

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

4шт.

9

47497516

MOUNTING PLATE

1шт.

10

13507421

WASHER,12.2mm ID x 20mm OD x 2mm Thk

12 x 20 x 2

1шт.

11

14331121

HEX SOC SCREW,M12 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

12

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

13

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

1шт.

14

85700613

CLAMP,1.75mm W x 0.20mm Thk

1шт.

Выбрано товаров: 14
