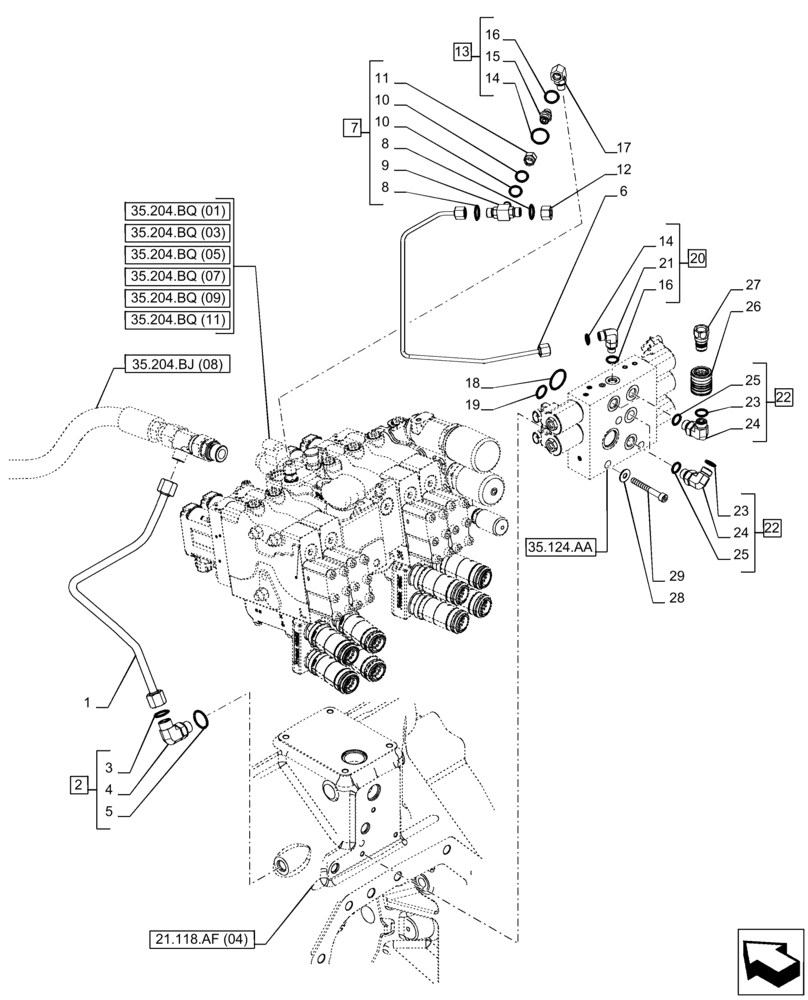

Запчасти Case IH PUMA 220 CVT (35.124.AB[02]) - VAR - 758072, 758077, 758082 - SOLENOID VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

87724322

HYD TUBE

Supply

1шт.

2

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

ASSY, Incl 3 - 5

1шт.

3

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

5

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

6

87735091

HYD TUBE

LS

1шт.

7

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

ASSY, Incl 8 - 11

1шт.

8

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

9

NSS

NOT SOLD SEPARAT

Valve, Incl in 7

1шт.

10

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

12

5189973

PLUG

1шт.

13

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 14 (Q.ty 1), 15, 16 (Q.ty 1)

1шт.

14

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

1шт.

16

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

17

87736553

HYD CONNECTOR

1шт.

18

14458181

O-RING,29.82mm ID x 2.62" Width

1шт.

19

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

20

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 14 (Q.ty 2), 16 (Q.ty 1), 21

1шт.

21

NSS

NOT SOLD SEPARAT

Elbow, Incl in 20

1шт.

22

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 23 - 25

4шт.

23

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

24

NSS

NOT SOLD SEPARAT

Elbow, Incl in 22

1шт.

25

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

26

47123022

QUICK MALE COUPLING,26mm ID x 33.2mm OD x 62.5mm L, Female

Female

2шт.

27

47123021

HALF-COUPLING

Male

2шт.

28

11193979

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

29

14359321

HEX SOC SCREW,M8 x 65mm, Cl 8.8

3шт.
