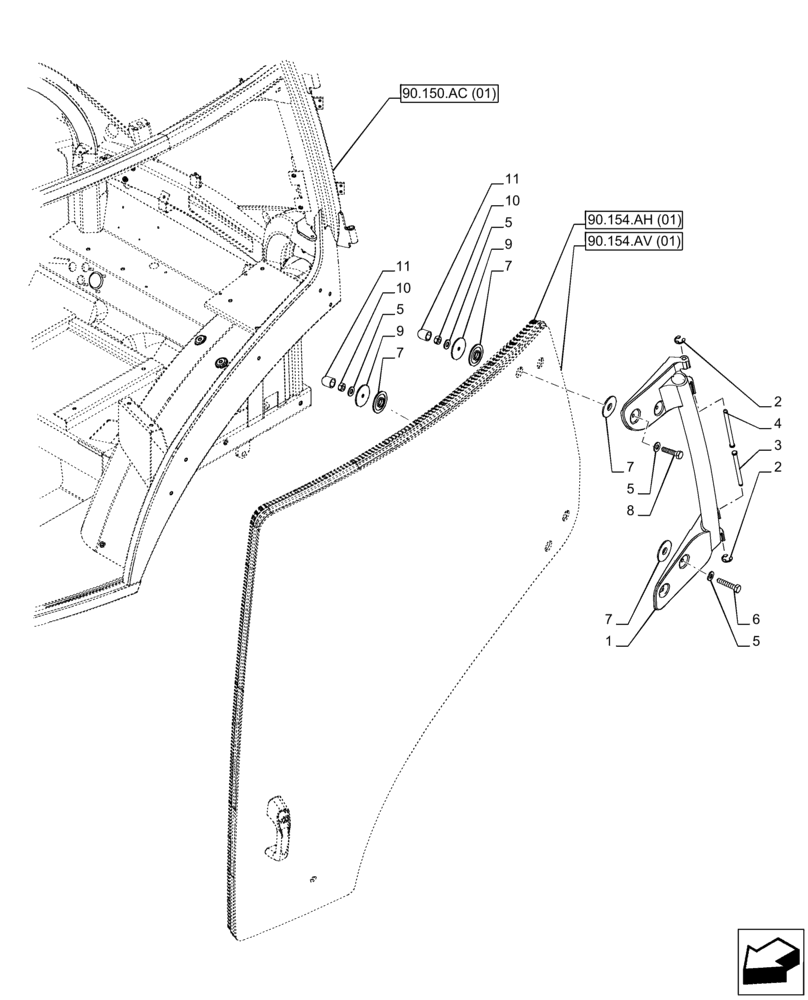

Запчасти Case IH PUMA 220 CVT (90.154.AE[01]) - VAR - 391179, 391233, 758139, 758140, 758141, 758142, 758143, 758145, 758146 - CAB DOOR, HINGE, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87301643

HINGE

LH

1шт.

2

11087971

CIRCLIP,M8

2шт.

3

82029160

PIN,9.8MM OD X 117.6MM L

Lower

1шт.

4

82029159

PIN,9.8mm OD x 129mm L

Upper

1шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

6

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

2шт.

7

87528178

SEALING WASHER,20mm ID x 60mm OD x 5.5mm Thk

Door Hinge

6шт.

8

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

9

44995004

WASHER,9mm ID x 60mm OD x 3.4mm Thk

2шт.

10

9706690

NUT,M8 x 1.25, Cl 8

4шт.

11

5132136

CAP COVER,M8

M8

4шт.
