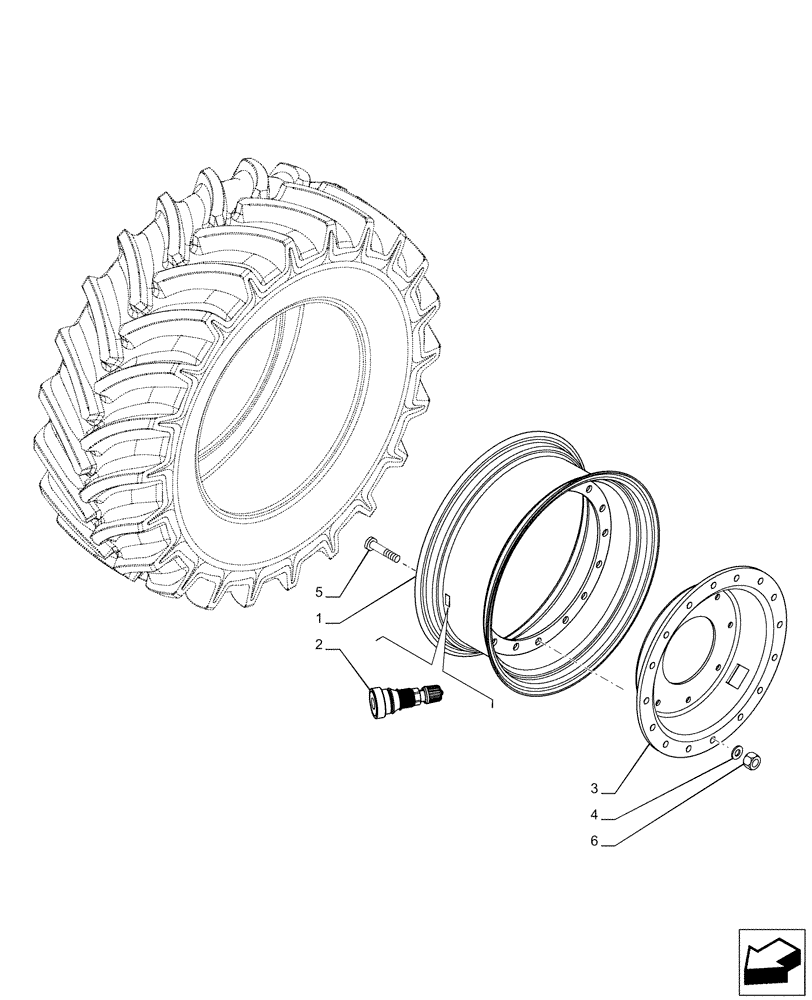

Запчасти Case IH PUMA 200 CVT (44.520.AB[13]) - VAR - 8389403 - REAR, WHEEL (DW18LX42) (44) - WHEELS

1

84467050

RIM,TW18LX42, 16 Bolts, CASE Silver

DW18L x 42

1шт.

2

87323751

PNEUMATIC VALVE

1шт.

3

87600346

WHEEL DISC,787.4mm Dia, 16 Bolts, CASE Silver

1шт.

4

82019267

WASHER,17.0mm ID x 33.2mm OD x 5.5mm Thk

16.8 x 28.4 x 3.9

16шт.

5

84412926

BOLT,Round, M16 x 1.5 x 63mm L

M16 x 1.5

16шт.

6

12164121

NUT,M16 x 1.5, Cl 10

16шт.
