Запчасти Case IH PUMA 200 CVT (41.216.AV[15]) - VAR - 758048 - SUSPENDED FRONT AXLE, STEERING CYLINDER, HYDRAULIC LINE (41) - STEERING

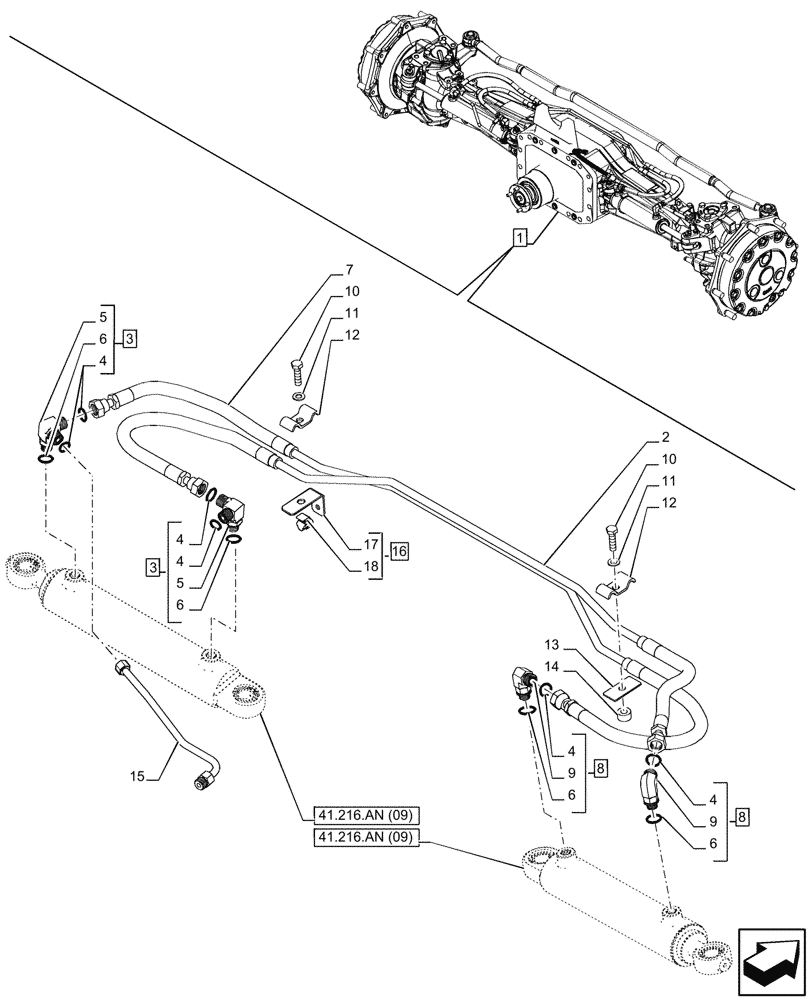

Схема запчастей Case IH PUMA 200 CVT - (41.216.AV[15]) - VAR - 758048 - SUSPENDED FRONT AXLE, STEERING CYLINDER, HYDRAULIC LINE (41) - STEERING
1
41.216.an (09)
7
4
4
11
9
13
5
4
3
10
8
17
16
14
6
3
12
6
4
9
41.216.an (09)
15
6
18
6
11
10
4
5
8
2
12

Артикул

Название

Примечание

Количество

1

84381237

LIVE FRONT AXLE

ASSY, 4WD Suspended, Incl 2 - 18

1шт.

See Axle Components also in Figure 25.100.AD (08), 25.102.AD (08), 25.108.AA (07), 25.108.AB (02), 25.108.AG (13), 25.108.AG (14), 41.106.AG (08), 41.216.AN (09), 55.047.AA (08)

1шт.

2

5188440

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

Right Steering

1шт.

3

5188443

90 ELBOW

ASSY, Incl 4 (Q.ty 2), 5, 6 (Q.ty 1)

2шт.

4

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

6

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

7

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.

8

47127165

90 ELBOW

ASSY, Incl 4 (Q.ty 2), 6 (Q.ty 1), 9

2шт.

9

5188439

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

Left Steering

1шт.

10

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

12

5188504

BRACKET

2шт.

13

5188503

BRACKET

1шт.

14

13605811

SPACER,8.50mm ID x 18.00mm OD x 10.00mm, STL, ZND

2шт.

15

84233089

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

Steering Cylinder

1шт.

16

87730142

BRACKET

ASSY, Incl 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

Bracket, Incl in 16

1шт.

18

14571780

CLIP

1шт.

Выбрано товаров: 19
