(41.216.AV[06]) - VAR - 391157 - 4WD FRONT AXLE, STEERING CYLINDER, HYDRAULIC LINE

Запчасти Case IH PUMA 200 CVT (41.216.AV[06]) - VAR - 391157 - 4WD FRONT AXLE, STEERING CYLINDER, HYDRAULIC LINE (41) - STEERING

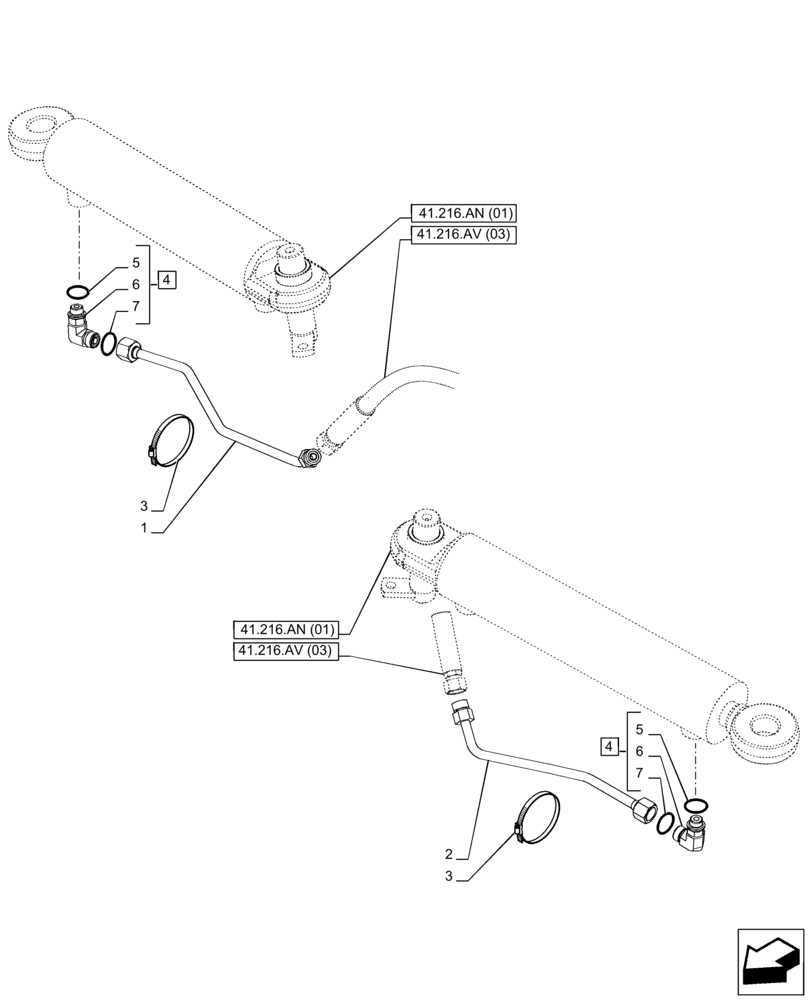

Схема запчастей Case IH PUMA 200 CVT - (41.216.AV[06]) - VAR - 391157 - 4WD FRONT AXLE, STEERING CYLINDER, HYDRAULIC LINE (41) - STEERING
1
3
5
41.216.av (03)
6
6
4
41.216.an (01)
3
7
2
7
5
41.216.an (01)
41.216.av (03)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84233156

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

RH Steering Cylinder

1шт.

2

84233089

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

LH Steering Cylinder

1шт.

3

13000990

COLLAR,60mm - 80mm, Worm Gear

2шт.

4

47127165

90 ELBOW

ASSY, Incl 5 - 7

2шт.

5

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

1шт.

7

14437785

O-RING,11.3mm ID x 2.4mm

1шт.
