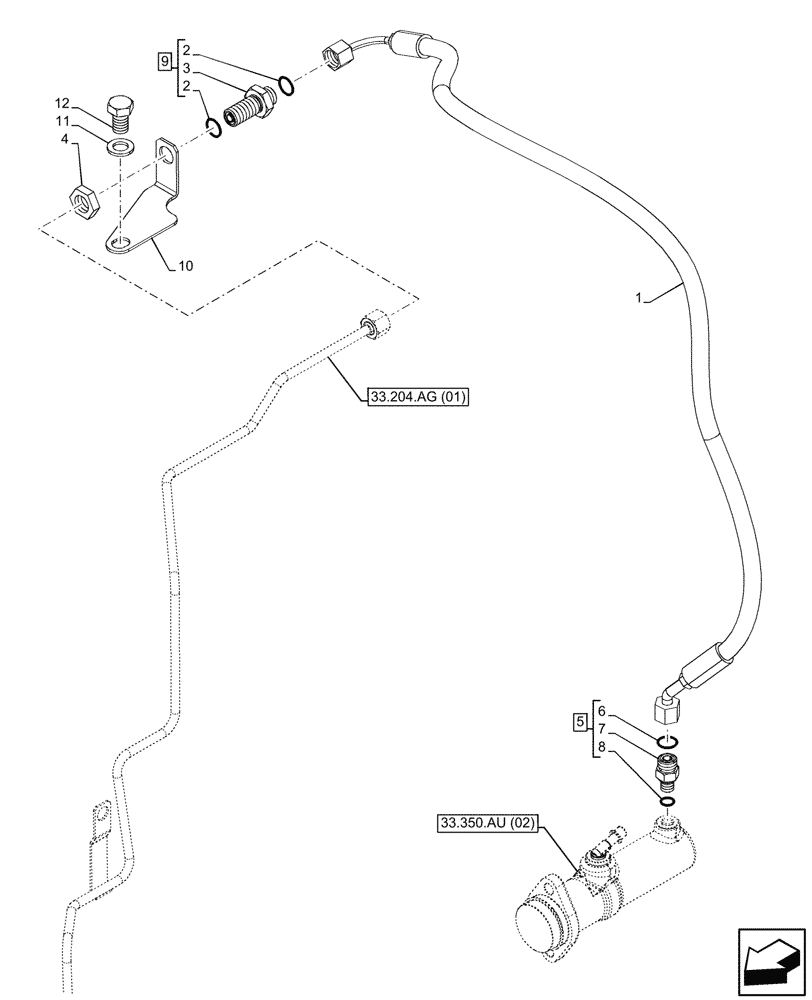

Запчасти Case IH PUMA 200 CVT (33.350.AS[01]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE LINE, FRONT (33) - BRAKES & CONTROLS

1

84427438

HYDRAULIC HOSE

Front Brake

1шт.

2

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

4

87010704

BHD LOCK NUT,11/16"-16

1шт.

5

84593999

HYD CONNECTOR,11/16-16 ORFS, M12 x 1.5 ORB

ASSY, Incl 6 - 8

1шт.

6

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

8

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

9

86978770

UNION,11/16"-6, ORFS

ASSY, Incl 2, 3

1шт.

10

47438070

BRACKET

1шт.

11

10520201

WASHER,16.4mm ID x 28mm OD x 3mm Thk

1шт.

12

374888

BOLT,Hex, M16 x 2 x 25mm, Cl 8.8, Full Thd

1шт.
