Запчасти Case IH PUMA 200 CVT (33.350.AR[02]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE FLUID RESERVOIR (33) - BRAKES & CONTROLS

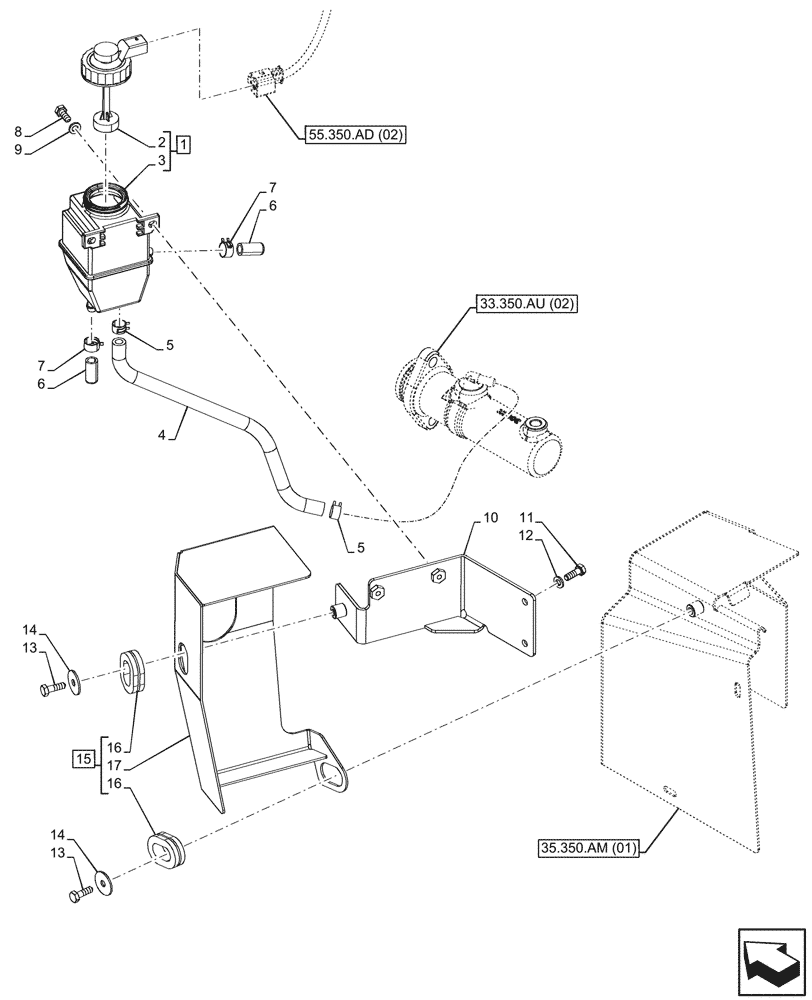

Схема запчастей Case IH PUMA 200 CVT - (33.350.AR[02]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE FLUID RESERVOIR (33) - BRAKES & CONTROLS
33.350.au (02)
12
4
7
15
13
11
13
3
2
6
9
16
14
5
16
8
7
17
10
14
6
5
1
35.350.am (01)
55.350.ad (02)

Артикул

Название

Примечание

Количество

1

82036189

TANK

ASSY, Incl 2, 3

1шт.

2

82031428

PLUG

1шт.

3

82036188

BRAKE FLUID TANK

1шт.

4

47528675

HOSE

Output Oil Reservoir

1шт.

5

82011382

HOSE CLAMP,15mm - 17mm

2шт.

6

81871497

COVER

2шт.

7

81864605

HOSE CLAMP,11.5mm - 14.75mm

2шт.

8

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

9

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

10

47528431

BRACKET

1шт.

11

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

12

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

13

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

14

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

15

47528383

COVER

ASSY, Incl 16, 17

1шт.

16

84528845

GROMMET

2шт.

17

NSS

NOT SOLD SEPARAT

Cover, Incl in 15

1шт.

Выбрано товаров: 17
