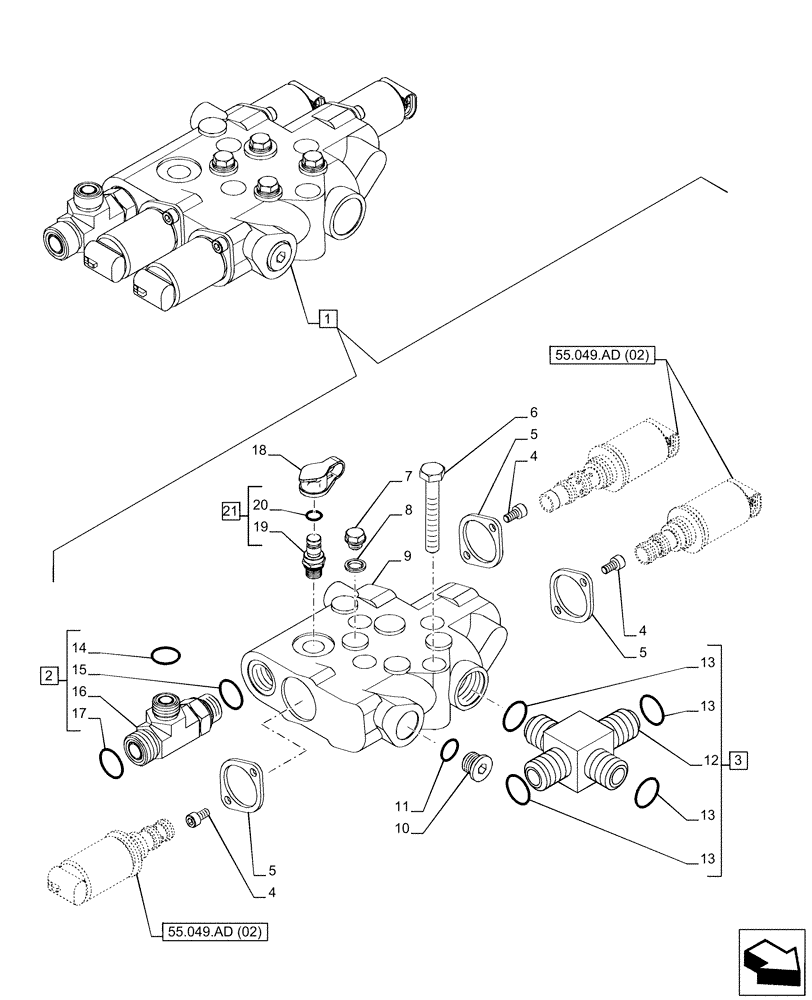

Запчасти Case IH PUMA 200 CVT (31.104.AR[02]) - VAR - 337426, 337427, 337428, 337429, 337430, 337431, 391145, 758028, 758030, 758031, 758032 - PTO, CONTROL VALVE, COMPONENTS (31) - IMPLEMENT POWER TAKE OFF

1

87525222

DISTRIBUTOR

ASSY, Incl 2 - 11, 17

1шт.

2

47136372

HYD CONNECTOR,M22 x 1.5 x 88.5mm L

ASSY, Incl 14 (Q.ty 1), 15, 16 (Q.ty 1)

1шт.

3

5187063

HYD CONNECTOR

ASSY, Incl 14 (Q.ty 1), 17 (Q.ty 3), 18

1шт.

4

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

8шт.

5

5194826

BRACKET

4шт.

6

15888821

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

4шт.

7

87535222

PLUG,Hex, M10 x 1 x 13mm

4шт.

8

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

4шт.

9

87523105

VALVE BODY

1шт.

10

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

11

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

12

NSS

NOT SOLD SEPARAT

Elbow, Incl in 13

1шт.

13

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

14

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

15

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 12

1шт.

17

47123020

PLUG,Hex

1шт.

18

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

19

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

20

47725668

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

21

5185423

COUPLING

Incl 19, 20

1шт.
