Запчасти Case IH PUMA 200 CVT (90.118.BX[05]) - VAR - 391209, 758197 - LADDER, TOP COVER, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

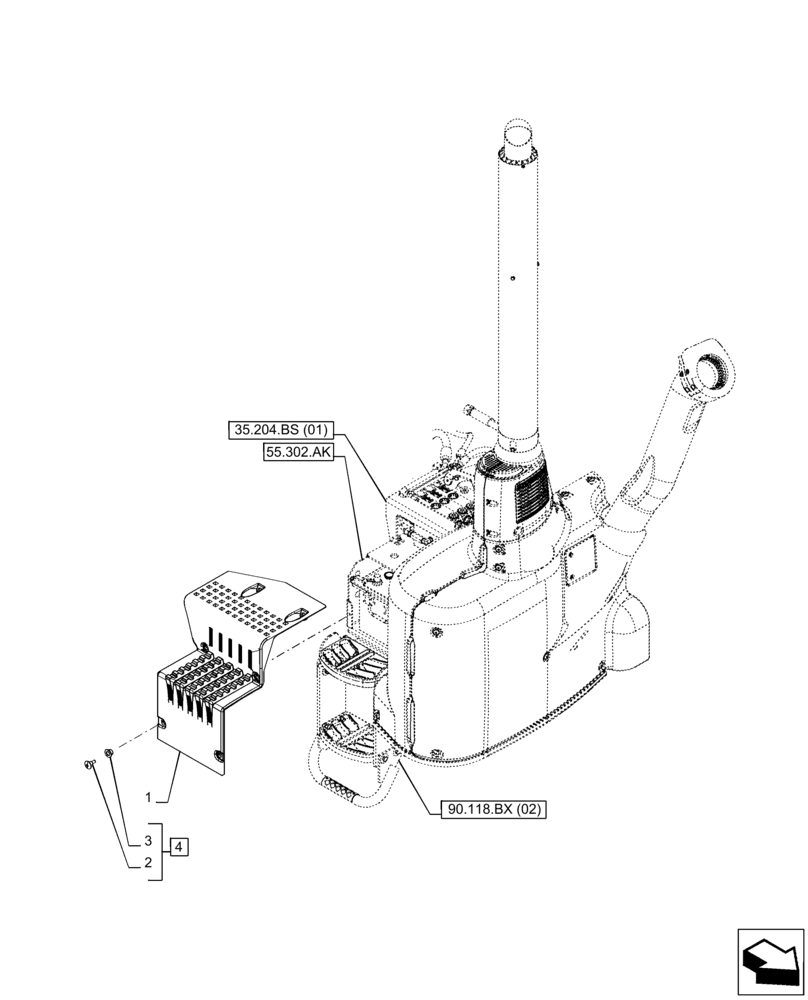

Схема запчастей Case IH PUMA 200 CVT - (90.118.BX[05]) - VAR - 391209, 758197 - LADDER, TOP COVER, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
55.302.ak
35.204.bs (01)
3
90.118.bx (02)
1
2

Артикул

Название

Примечание

Количество

1

84370309

STEP

Top

1шт.

2

NSS

NOT SOLD SEPARAT

Bushing, Thermal Insulator, Incl in 4

1шт.

3

NSS

NOT SOLD SEPARAT

Screw M6 x 20, Incl in 4

1шт.

4

84348915

SCREW,Pan Hd Phil, M6 x 20mm, w/Thermal Insulator

With Thermal Insulator, ASSY, Incl 2, 3

6шт.

Выбрано товаров: 4
