(90.102.AD[02]) - VAR - 391216, 758207, 758208, 758210 - HOOD, SUPPORTING ARM

Запчасти Case IH PUMA 200 CVT (90.102.AD[02]) - VAR - 391216, 758207, 758208, 758210 - HOOD, SUPPORTING ARM (90) - PLATFORM, CAB, BODYWORK AND DECALS

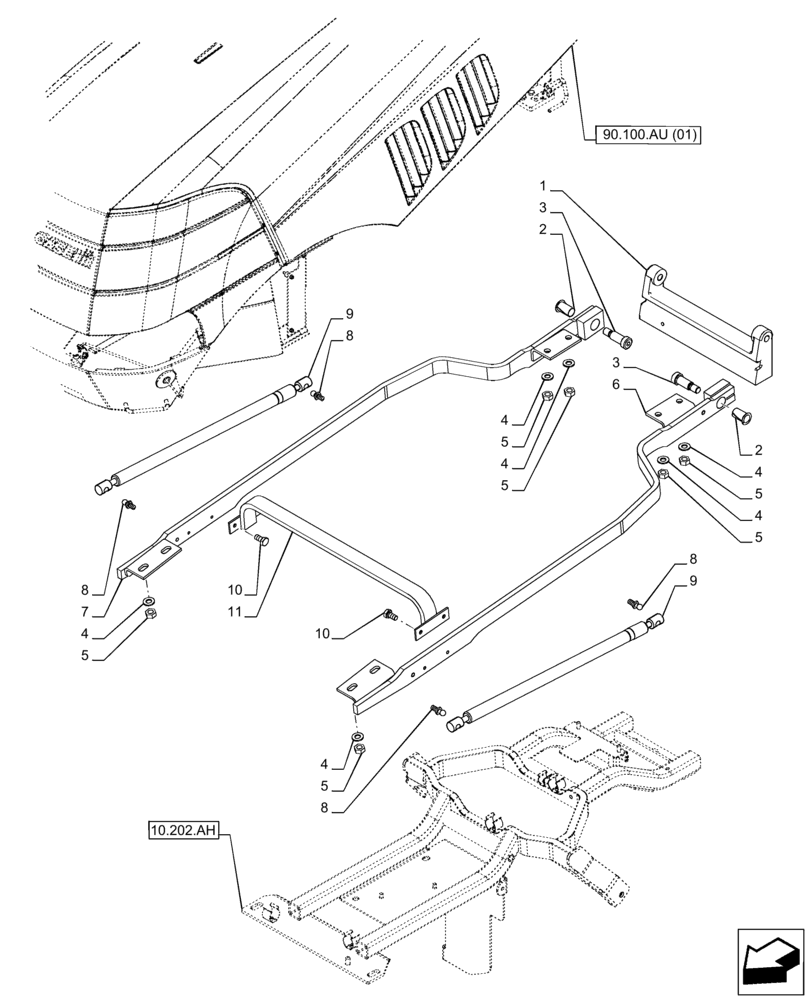

Схема запчастей Case IH PUMA 200 CVT - (90.102.AD[02]) - VAR - 391216, 758207, 758208, 758210 - HOOD, SUPPORTING ARM (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
9
5
2
4
11
90.100.au (01)
2
6
4
4
3
8
8
8
5
5
10
5
3
4
4
10.202.ah
7
5
1
8
4
9
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82036797

HINGE

1шт.

2

89846307

NYLON BEARING,.626" ID x .937" OD x 1.155" L

2шт.

3

89845583

BOLT,Hex, 26.05mm ID x 50.8mm L

Shoulder

2шт.

4

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

8шт.

5

100016

NUT,M10 x 1.5, Cl 8

8шт.

6

47446363

SUPPORT

LH

1шт.

7

47446364

SUPPORT

RH

1шт.

8

83952214

BALL STUD,M8 x 29.5mm OAL

4шт.

9

82037390

GAS STRUT

Hood Lift

2шт.

10

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.

11

87571385

REINFORCEMENT

1шт.

Выбрано товаров: 11
