(55.404.BS[04]) - VAR - 758967 - LED WORK LAMP, FRONT

Запчасти Case IH PUMA 200 CVT (55.404.BS[04]) - VAR - 758967 - LED WORK LAMP, FRONT (55) - ELECTRICAL SYSTEMS

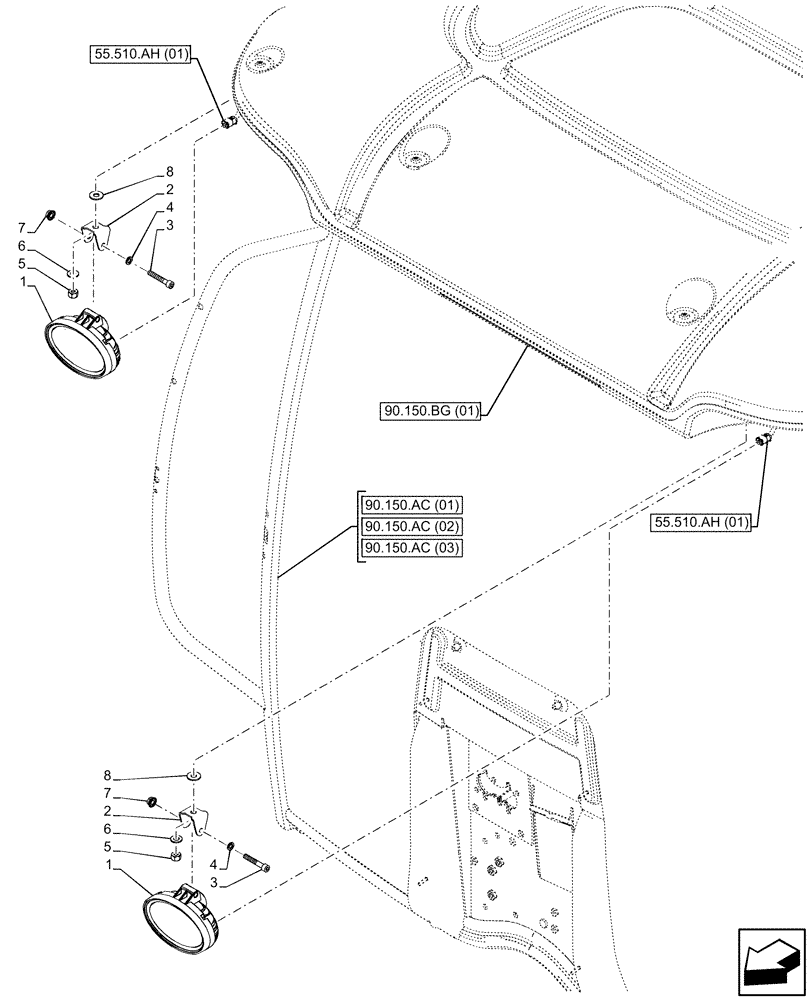

Схема запчастей Case IH PUMA 200 CVT - (55.404.BS[04]) - VAR - 758967 - LED WORK LAMP, FRONT (55) - ELECTRICAL SYSTEMS
90.150.ac (02)
1
4
2
3
4
8
8
6
3
7
6
1
7
5
5
2
90.150.ac (03)
90.150.bg (01)
90.150.ac (01)
55.510.ah (01)
55.510.ah (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47677856

HEADLAMP,20W

Front

14шт.

2

47732510

BRACKET

4шт.

3

14306924

HEX SOC SCREW,M8 x 1.25 x 50mm, Cl 8.8

4шт.

4

10571774

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

4шт.

5

440430

NUT,M10

4шт.

6

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

7

13046211

NUT,Flange Hex, M8

4шт.

8

12646801

WASHER,10.2mm ID x 25mm OD x 2mm Thk

4шт.

Выбрано товаров: 8
