(55.350.AF[01]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), ELECTRONIC BRAKE MODULE (EBM)

Запчасти Case IH PUMA 200 CVT (55.350.AF[01]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), ELECTRONIC BRAKE MODULE (EBM) (55) - ELECTRICAL SYSTEMS

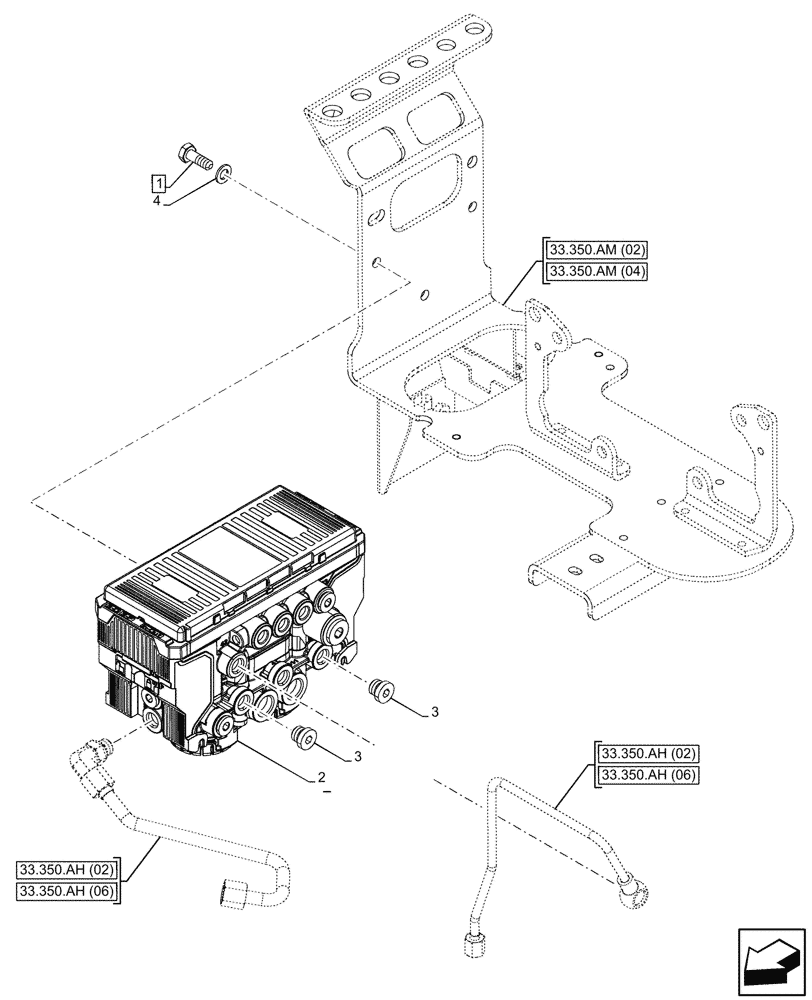

Схема запчастей Case IH PUMA 200 CVT - (55.350.AF[01]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), ELECTRONIC BRAKE MODULE (EBM) (55) - ELECTRICAL SYSTEMS
33.350.am (04)
3
2
3
4
1
33.350.ah (06)
33.350.ah (06)
33.350.am (02)
33.350.ah (02)
33.350.ah (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11106480

BOLT,Hex, M10 x 30mm

M10 x 30

3шт.

2

47875310

MODULE

1шт.

3

1350997

PLUG,Rnd Hd, Int Hex Skt, M16 x 1.5 x 17.30mm, ORB

2шт.

4

140017

WASHER,M10 x 20mm OD x 2mm Thk

3шт.

Выбрано товаров: 4
