(55.051.AA[02A]) - VAR - 758131, 758133, 758265, 758666, 758667, 758668, 758669, 759265 - AIR CONDITIONING WITH ATC, CONTROL PANEL - D7478

Запчасти Case IH PUMA 200 CVT (55.051.AA[02A]) - VAR - 758131, 758133, 758265, 758666, 758667, 758668, 758669, 759265 - AIR CONDITIONING WITH ATC, CONTROL PANEL - D7478 (55) - ELECTRICAL SYSTEMS

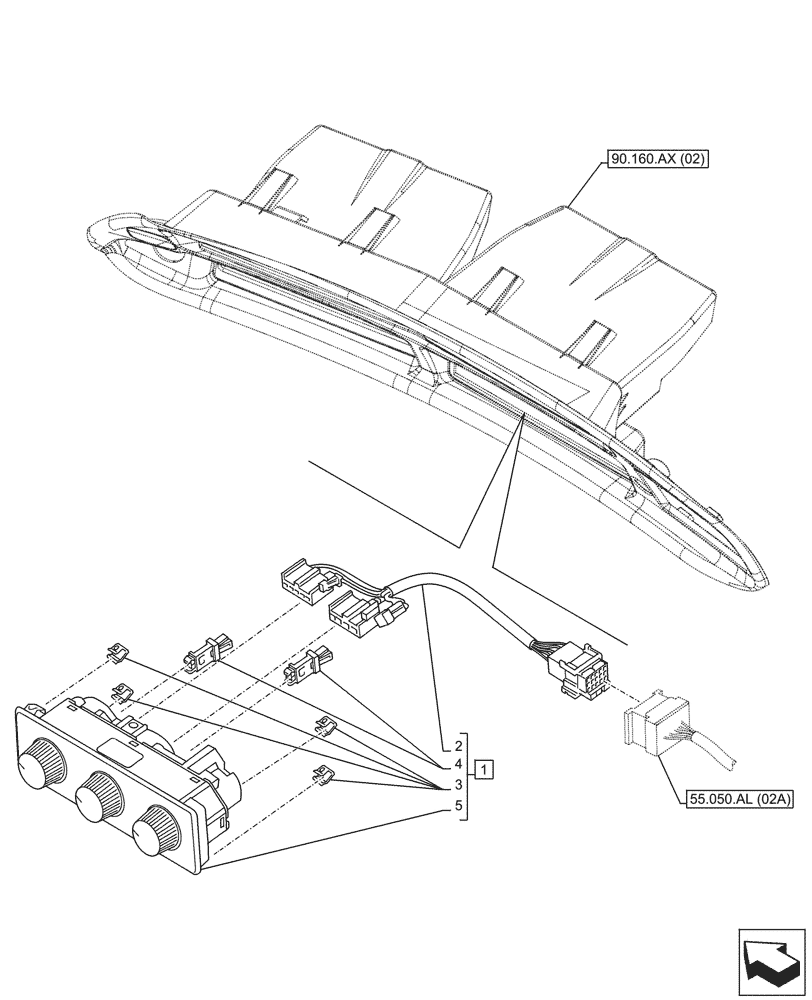

Схема запчастей Case IH PUMA 200 CVT - (55.051.AA[02A]) - VAR - 758131, 758133, 758265, 758666, 758667, 758668, 758669, 759265 - AIR CONDITIONING WITH ATC, CONTROL PANEL - D7478 (55) - ELECTRICAL SYSTEMS
55.050.al (02a)
5
3
2
4
1
90.160.ax (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47551198

CONTROL PANEL

AC W/ATC, ASSY, Incl 2 - 5

1шт.

2

47674307

WIRE HARNESS

AC W/ATC Control Panel

1шт.

3

47674301

SPRING CLIP

4шт.

4

47674357

LAMP,Led

2шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

Выбрано товаров: 5
