(37.120.AV[08]) - VAR - 391170, 758075, 758080 - 3 POINT HITCH, LIFT ARM

Запчасти Case IH PUMA 200 CVT (37.120.AV[08]) - VAR - 391170, 758075, 758080 - 3 POINT HITCH, LIFT ARM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

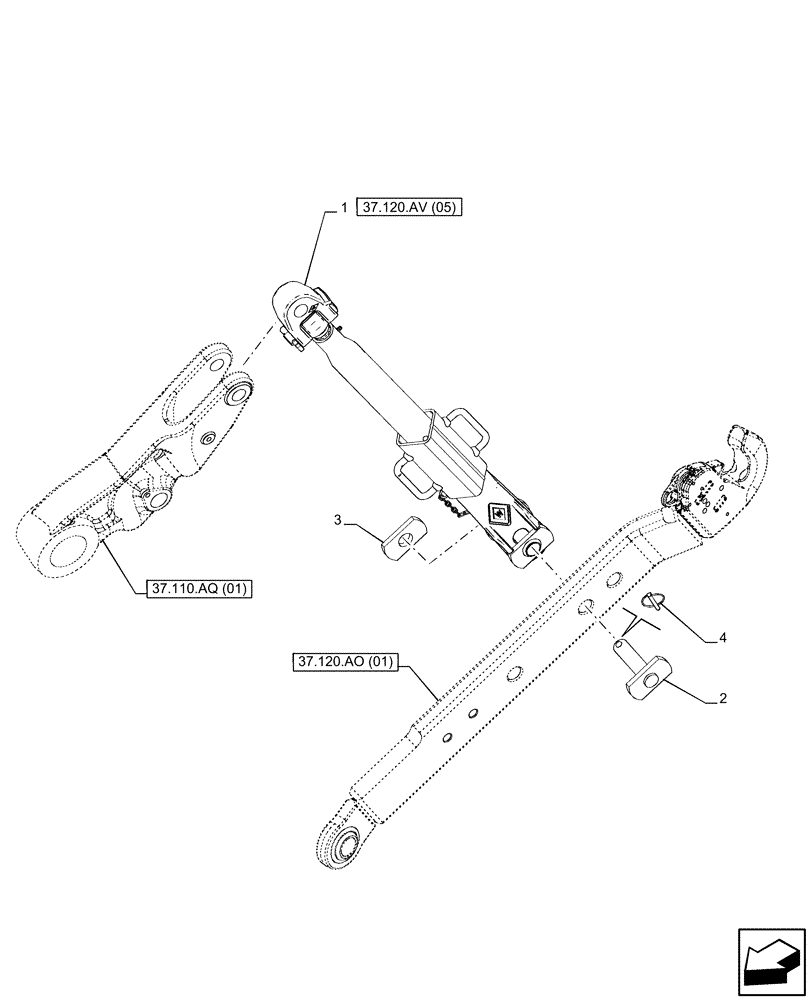

Схема запчастей Case IH PUMA 200 CVT - (37.120.AV[08]) - VAR - 391170, 758075, 758080 - 3 POINT HITCH, LIFT ARM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.110.aq (01)
1
4
2
3
37.120.av (05)
37.120.ao (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84385467

LIFTING ROD

ASSY, Standard

1шт.

1

87311417

LIFT LINK

ASSY, Alternative Part

1шт.

Same Usage/Applicability. To be Ordered when P/N 84385467 is not Available

1шт.

2

87315467

PIN

1шт.

3

87315466

PLATE

1шт.

4

47125579

LINCH PIN,11.5mm OD

11.5mm OD

1шт.

Выбрано товаров: 6
